Technical Specifications
Parameters and characteristics for this part
| Specification | 638-W15-622-012 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 500 | $ 15.34 | |
Description
General part information
638-W15 Series

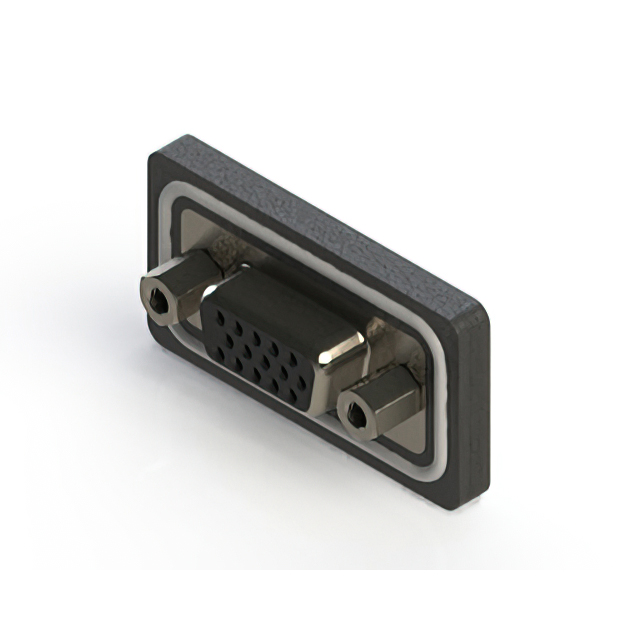

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
