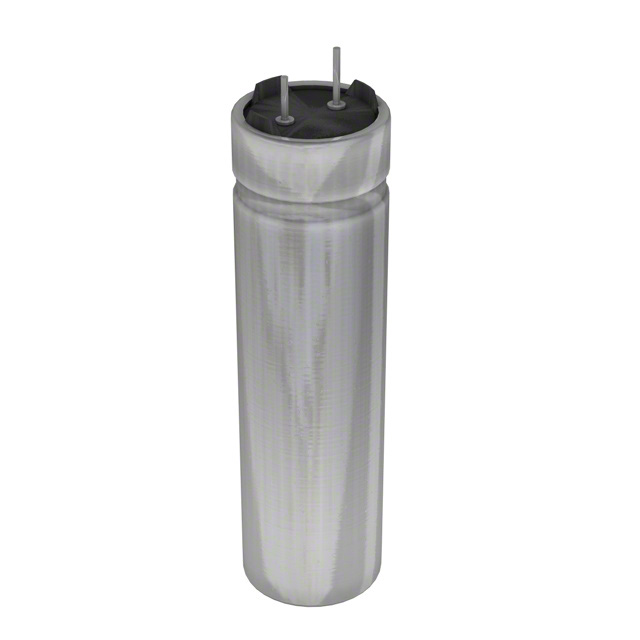

VPR242U050N3L
ActiveCornell Dubilier Knowles
CAP ALUM 2400UF 50V RADIAL TH
VPR242U050N3L
ActiveCornell Dubilier Knowles
CAP ALUM 2400UF 50V RADIAL TH
Description
General part information
VPR242U050N3L
2400 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 15mOhm @ 10kHz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | VPR242U050N3L |
|---|---|
| Applications | General Purpose |
| Capacitance | 2400 µF |
| ESR (Equivalent Series Resistance) | 15 mOhm |
| Height - Seated (Max) | 3.626 in |
| Lead Spacing | 0.402 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 5.639 A |
| Size / Dimension Diameter | 1 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 50 V |
