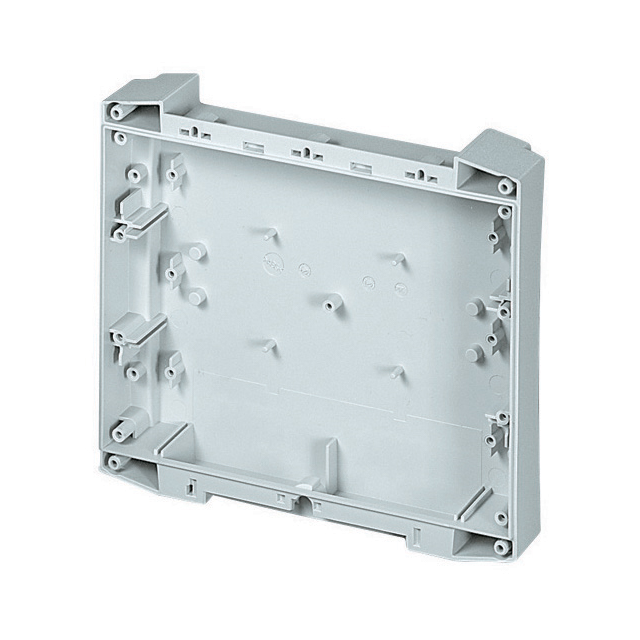

BCD 400 UT-0.5-7035

Active

Bopla Enclosures

BOX ABS GRAY 15.75"L X 13.31"W

Search across all available documentation for this part.

Active

Bopla Enclosures

BOX ABS GRAY 15.75"L X 13.31"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BCD 400 UT-0.5-7035	BCD 400 Series

Area (L x W)	210 in²	210 in²
Area (L x W)	1355 cm²	1355 cm²
Color	Gray	Gray, Gray Frame, Clear
Container Type	Box	Box
Design	Open End(s)	Open End(s)
Features	PCB Supports, Card Guides	PCB Supports, Card Guides, Hinged
For Use With/Related Products	-	BOCARD 400 System
Height [z]	71.5 mm	71.5 mm
Height [z]	2.815 "	2.815 "
Material	Plastic, ABS	Plastic, ABS, Plastic, Polycarbonate
Material Flammability Rating	UL94 HB	UL94 HB
Size / Dimension	-	0.787 - 1.476 "
Size / Dimension	-	20 - 37.5 mm
Size / Dimension [x]	15.748 "	15.354 - 15.905 "
Size / Dimension [x]	400 mm	390 - 404 mm
Size / Dimension [y]	13.307 "	3.268 - 13.543 "
Size / Dimension [y]	338 mm	83 - 344 mm
Thickness [custom]	4.5 mm	4.5 mm
Thickness [custom]	0.177 in	0.177 in
Type	-	Cover, Lid

BOX ABS GRAY 15.75"L X 13.31"W

Part	Color	Container Type	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Area (L x W)	Area (L x W)	Thickness [custom]	Thickness [custom]	Material	Material Flammability Rating	Size / Dimension [z]	Size / Dimension [z]	Type	For Use With/Related Products	Height [z]	Height [z]
Bopla Enclosures BCD 400 UT-7035	Gray	Box	Open End(s)	13.307 "	15.748 "	338 mm	400 mm	Card Guides, PCB Supports	210 in²	1355 cm²	4.5 mm	0.177 in	Plastic, ABS	UL94 HB
Bopla Enclosures BCD 400 OT-G-7035	Clear, Gray Frame			13.543 "	15.905 "	344 mm	404 mm	Hinged					Plastic, Polycarbonate		1.476 "	37.5 mm	Cover, Lid	BOCARD 400 System
Bopla Enclosures BCD 400 KRD-7035	Gray			3.268 in	15.354 in	83 mm	390 mm						Plastic, Polycarbonate		0.787 in	20 mm	Cover, Lid	BOCARD 400 System
Bopla Enclosures BCD 400 OT-FSC-7035	Gray			13.543 "	15.905 "	344 mm	404 mm	Hinged					Plastic, Polycarbonate		1.476 "	37.5 mm	Cover, Lid	BOCARD 400 System
Bopla Enclosures BCD 400 OT-G-7024	Clear, Gray Frame			13.543 "	15.905 "	344 mm	404 mm	Hinged					Plastic, Polycarbonate		1.476 "	37.5 mm	Cover, Lid	BOCARD 400 System
Bopla Enclosures BCD 400 UT-0.5-7035	Gray	Box	Open End(s)	13.307 "	15.748 "	338 mm	400 mm	Card Guides, PCB Supports	210 in²	1355 cm²	4.5 mm	0.177 in	Plastic, ABS	UL94 HB					71.5 mm	2.815 "
Bopla Enclosures BCD 400 OT-FSC-7024	Gray			13.543 "	15.905 "	344 mm	404 mm	Hinged					Plastic, Polycarbonate		1.476 "	37.5 mm	Cover, Lid	BOCARD 400 System
Bopla Enclosures BCD 400 KRD-7024	Gray			3.268 in	15.354 in	83 mm	390 mm						Plastic, Polycarbonate		0.787 in	20 mm	Cover, Lid	BOCARD 400 System

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.93

General part information

Box Plastic, ABS Gray Open End(s) 15.748" L x 13.307" W (400.00mm x 338.00mm) X 2.815" (71.50mm)

Technical documentation and resources
