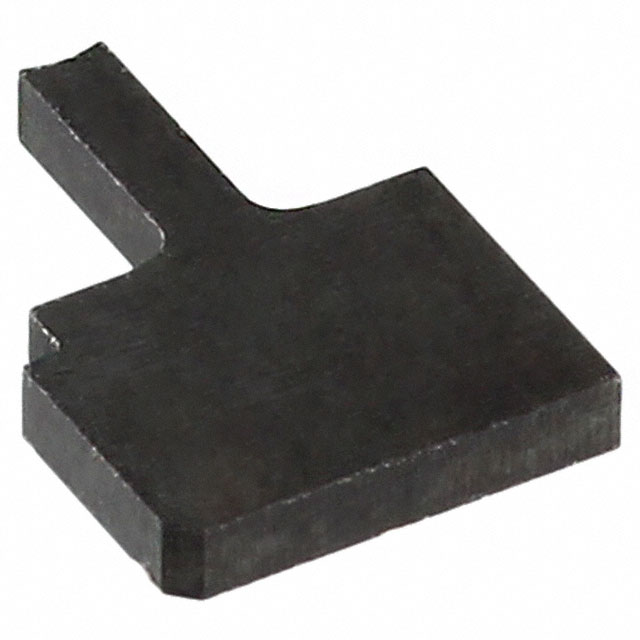

YRS 7014-0374 ANVIL B

Active

JST Sales America Inc.

TOOL PART LOWER DIE CUTTER

Search across all available documentation for this part.

Active

JST Sales America Inc.

TOOL PART LOWER DIE CUTTER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YRS 7014-0374 ANVIL B	YRS Series

	-	-
Accessory Type	-	Shear Blade, Blade, Anvil
For Use With/Related Products	-	Rectangular Contacts, SJN-002PT-0.9, SBHSM-002T-P0.5, YRS-859, YRS-620
Ratcheting	-	False
Ratcheting	-	Ratchet
Tool Type	Die Set - Lower	Hand Crimper, Die Set - Lower
Wire Entry Location	-	Side Entry
Wire Gauge or Range - AWG	-	24 - 32 AWG
Wire Gauge or Range - AWG	-	20 - 28 AWG

TOOL HAND CRIMPER 28-32AWG SIDE

Part	Wire Entry Location	Tool Type	For Use With/Related Products	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Ratcheting
JST Sales America Inc. YRS-243	Side Entry	Hand Crimper	Rectangular Contacts	32 AWG	28 AWG
JST Sales America Inc. YRS-036	Side Entry	Hand Crimper	SJN-002PT-0.9			Ratchet
JST Sales America Inc. YRS-1091	Side Entry	Hand Crimper	Rectangular Contacts	26 AWG	22 AWG
JST Sales America Inc. YRS-122	Side Entry	Hand Crimper	Rectangular Contacts	28 AWG	22 AWG
JST Sales America Inc. YRS-1090	Side Entry	Hand Crimper	Rectangular Contacts	28 AWG	24 AWG
JST Sales America Inc. YRS-620	Side Entry	Hand Crimper	Rectangular Contacts	28 AWG	24 AWG
JST Sales America Inc. YRS-490	Side Entry	Hand Crimper	Rectangular Contacts			Ratchet
JST Sales America Inc. YRS-854	Side Entry	Hand Crimper	SBHSM-002T-P0.5			Ratchet
JST Sales America Inc. YRS-260	Side Entry	Hand Crimper	Rectangular Contacts	28 AWG	22 AWG
JST Sales America Inc. YRS 7014-0062 ANVIL B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 146.32

General part information

Tool Die Set - Lower For

Technical documentation and resources
