FFAM151*1

Active

Delevan

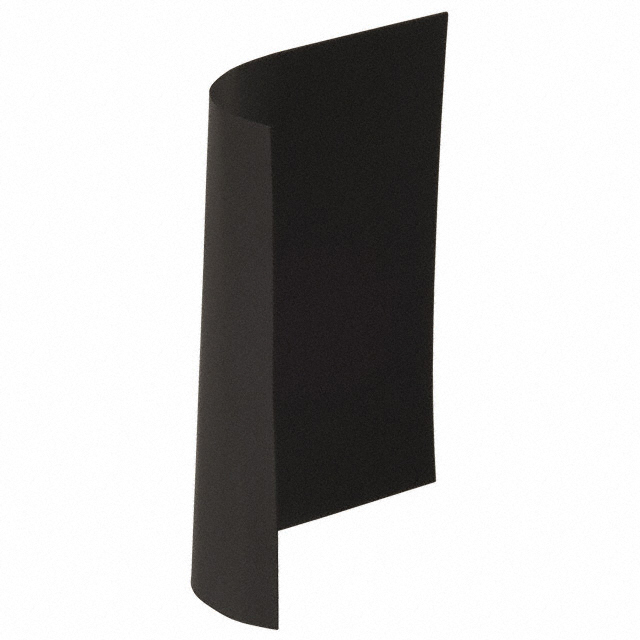

RF FERRITE SHEET 100MMX3.937"

Search across all available documentation for this part.

Active

Delevan

RF FERRITE SHEET 100MMX3.937"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FFAM151*1	FFAM15 Series

Adhesive	-	Single Sided, Non-Conductive, Non-Conductive, Double Sided
Length	-	7.874 in
Length	-	200 mm
Length [x]	0.1 m	0.1 - 300 m
Length [x]	3.937 in	3.937 - 11.811 in
Material	Ferrite Powder	Ferrite Powder
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shape	Square	Square
Thickness - Overall	1.5 mm	1.5 mm
Thickness - Overall	0.059 in	0.059 in
Type	Flexible Ferrite Sheet	Flexible Ferrite Sheet
Width	100 mm	100 mm
Width	3.937 in	3.937 in
Width	-	7.874 in
Width	-	200 mm
Width	-	11.811 in
Width	-	300 mm

RF FERRITE SHEET 100MMX3.937"

Part	Length [x]	Length [x]	Width	Width	Type	Operating Temperature [Max]	Operating Temperature [Min]	Material	Adhesive	Shape	Thickness - Overall	Thickness - Overall	Width [x]	Width [x]	Length	Length	Width [y]	Width [y]
Delevan FFAM151*1T1	0.1 m	3.937 in	100 mm	3.937 in	Flexible Ferrite Sheet	85 °C	-40 °C	Ferrite Powder	Non-Conductive, Single Sided	Square	1.5 mm	0.059 in
Delevan FFAM152*2T2					Flexible Ferrite Sheet	85 °C	-40 °C	Ferrite Powder	Non-Conductive, Double Sided	Square	1.5 mm	0.059 in	7.874 in	200 mm	7.874 in	200 mm
Delevan FFAM152*2T1					Flexible Ferrite Sheet	85 °C	-40 °C	Ferrite Powder	Non-Conductive, Single Sided	Square	1.5 mm	0.059 in	7.874 in	200 mm	7.874 in	200 mm
Delevan FFAM153*3T1	300 mm	11.811 in			Flexible Ferrite Sheet	85 °C	-40 °C	Ferrite Powder	Non-Conductive, Single Sided	Square	1.5 mm	0.059 in					11.811 in	300 mm
Delevan FFAM151*1	0.1 m	3.937 in	100 mm	3.937 in	Flexible Ferrite Sheet	85 °C	-40 °C	Ferrite Powder		Square	1.5 mm	0.059 in
Delevan FFAM151*1T2	0.1 m	3.937 in	100 mm	3.937 in	Flexible Ferrite Sheet	85 °C	-40 °C	Ferrite Powder	Non-Conductive, Double Sided	Square	1.5 mm	0.059 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Flexible Ferrite Sheet FFAM Ferrite Powder 3.937" (100.00mm) X 3.937" (100.00mm) X 0.059" (1.50mm)
