5943003821
ActiveFair-Rite Products Corp.

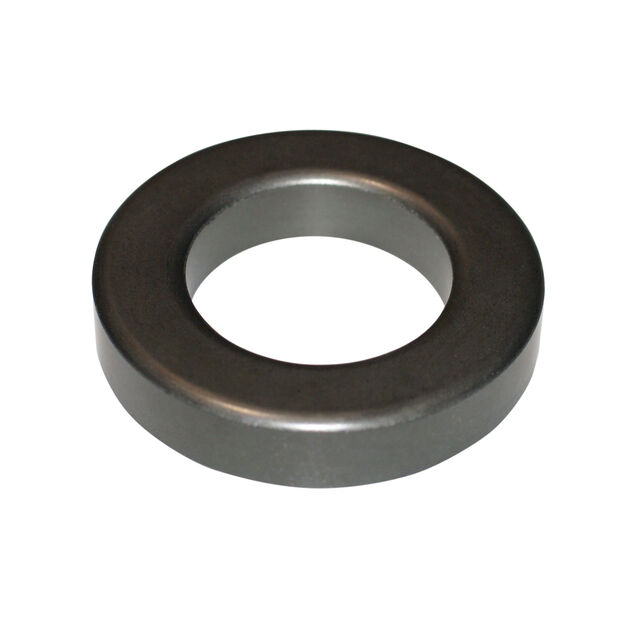

FERRITE CORE TOROID 1.075UH 43
5943003821
ActiveFair-Rite Products Corp.
FERRITE CORE TOROID 1.075UH 43
Description
General part information
5943003821
Plastic 43 Ferrite Core Toroid Type Length Width 2.472" (62.80mm) Diameter 0.539" (13.70mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 5943003821 |
|---|---|
| Core Factor (ΣI/A) | 0.92 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 0.92 mm⁻¹ |
| Core Type | Toroid |
| Diameter | 2.472 in |
| Effective Area (Ae) | 158 mm² |
| Effective Length (le) | 145 mm |
| Effective Magnetic Volume (Ve) | 22800 mm³ |
| Finish | Plastic |
| Gap | Ungapped |
| Height | 0.539 in |
| Inductance Factor (Al) | 1.075 µH |
| Initial Permeability (µi) | 800 |
| Material | 43 |
| Tolerance (Negative) | 25 % |
| Tolerance (Positive) | 20 % |
