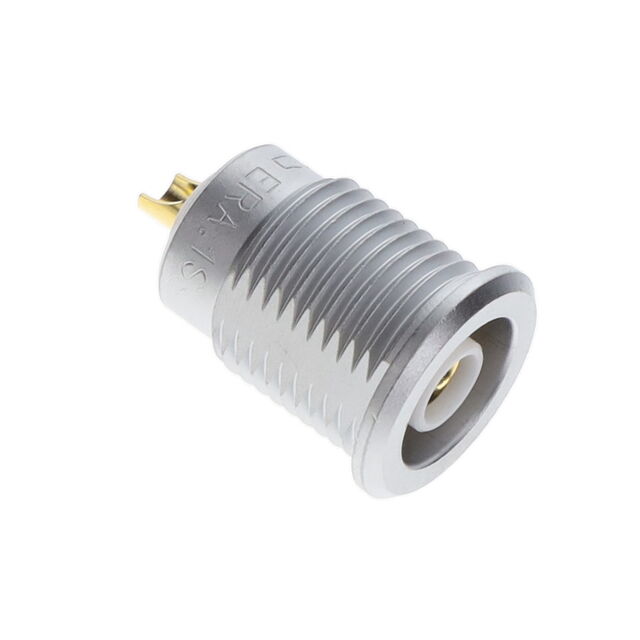

ERA.1S.130.CTL
ActiveLEMO
CONN RCPT FMALE 1P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ERA.1S.130.CTL
ActiveLEMO
CONN RCPT FMALE 1P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ERA.1S.130.CTL | ERA.1S Series |
|---|---|---|
| Body Finish | - | Chrome |
| Body Material | - | Brass |
| Cable Group | - | 174A, 188A, 196A, 316B, 178B, RG-122, 174, 400, 223, 187A, 179B, RG-58C, 302, 59B |
| Center Contact Material | - | Beryllium Copper |
| Center Contact Plating | - | Gold |
| Color | Silver | Silver, Black |
| Connector Style | - | Coaxial |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Female Sockets, Male Pins, Receptacle, Female Socket |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Bronze | Bronze, Brass |
| Contact Termination | - | Solder Cup |
| Current Rating (Amps) | 25 A | 6 - 25 A |
| Dielectric Material | - | Polyetheretherketone (PEEK) |
| Fastening Type | Push-Pull | Push-Pull |
| Housing Color | - | Silver |
| Impedance | - | 50 - 75 Ohms |
| Includes | - | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK) |
| Material Flammability Rating | - | UL94 V-0 |
| Mating Cycles | - | 1000 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Ports | - | 1 |
| Number of Positions | 1 | 1 - 6 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | - | 120 - 405 |
| Shield Termination | - | Solder |
| Shielding | Shielded | Shielded |
| Termination | - | Crimp |
ERA.1S Series
CONN RCPT FMALE 1P GOLD SLDR CUP
| Part | Ingress Protection | Orientation | Shell Material | Contact Material | Fastening Type | Shielding | Number of Positions | Color | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Insert Material | Shell Finish | Primary Material | Contact Finish - Mating | Connector Type | Mounting Feature | Shell Size - Insert | Material Flammability Rating | Termination | Body Material | Includes | Center Contact Plating | Mating Cycles | Number of Ports | Shield Termination | Connector Style | Dielectric Material | Cable Group | Impedance | Housing Color | Contact Termination | Center Contact Material | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ERA.1S.120.CTL | IP50 | Keyed | Brass | Bronze | Push-Pull | Shielded | 1 | Silver | -55 °C | 250 °C | 18 A | Polytetrafluoroethylene (PTFE) | Chrome | Metal | Gold | Receptacle, Female Sockets | Bulkhead - Rear Side Nut | 120 | ||||||||||||||||
LEMO ERA.1S.302.CLL | IP50 | Keyed | Brass | Brass, Bronze | Push-Pull | Shielded | 2 | Silver | -55 °C | 250 °C | 15 A | Polyetheretherketone (PEEK) | Chrome | Metal | Gold | Female Sockets, Male Pins, Receptacle | Bulkhead - Rear Side Nut | 302 | UL94 V-0 | |||||||||||||||
LEMO ERA.1S.304.CLL | IP50 | Keyed | Brass | Brass, Bronze | Push-Pull | Shielded | 4 | Silver | -55 °C | 250 °C | 10 A | Polyetheretherketone (PEEK) | Chrome | Metal | Gold | Female Sockets, Male Pins, Receptacle | Bulkhead - Rear Side Nut | 304 | UL94 V-0 | |||||||||||||||
LEMO ERA.1S.305.CLL | IP50 | Keyed | Brass | Brass, Bronze | Push-Pull | Shielded | Silver | -55 °C | 250 °C | 7 A, 10 A | Polyetheretherketone (PEEK) | Chrome | Metal | Gold | Female Sockets, Male Pins, Receptacle | Bulkhead - Rear Side Nut | 305 | UL94 V-0 | ||||||||||||||||
LEMO ERA.1S.303.CLA | IP50 | Keyed | Brass | Brass, Bronze | Push-Pull | Shielded | Silver | -55 °C | 250 °C | 10 A | Polyetheretherketone (PEEK) | Chrome | Metal | Gold | Female Sockets, Male Pins, Receptacle | Bulkhead - Rear Side Nut | 303 | UL94 V-0 | ||||||||||||||||
LEMO ERA.1S.408.CLL | IP50 | Keyed | Brass | Bronze | Push-Pull | Shielded | 1 | Silver | -55 °C | 250 °C | 6 A | Polyetheretherketone (PEEK) | Chrome | Metal | Gold | Receptacle, Female Sockets | Bulkhead - Rear Side Nut | UL94 V-0 | ||||||||||||||||
LEMO ERA.1S.405.CTL | IP50 | Keyed | Brass | Bronze | Push-Pull | Shielded | 1 | Silver | -55 °C | 250 °C | 8 A | Polytetrafluoroethylene (PTFE) | Chrome | Metal | Gold | Receptacle, Female Sockets | Bulkhead - Rear Side Nut | 405 | ||||||||||||||||
LEMO ERA.1S.302.CYM | IP50 | Keyed | Brass | Brass, Bronze | Push-Pull | Shielded | 2 | Silver | -55 °C | 250 °C | 15 A | Polyetheretherketone (PEEK) | Chrome | Metal | Gold | Female Sockets, Male Pins, Receptacle | Bulkhead - Rear Side Nut | 302 | UL94 V-0 | Crimp | ||||||||||||||
LEMO ERA.1S.250.CLL | IP50 | Push-Pull | -55 °C | 250 °C | Female Socket, Receptacle | Bulkhead - Rear Side Nut | Brass | 1 Connector, 1 Lockwasher, 1 Nut | Gold | 1000 | 1 | Solder | Coaxial | Polyetheretherketone (PEEK) | 174, 174A, 178B, 188A, 196A, 316B, RG-122 | 50 Ohms | Silver | Solder Cup | Beryllium Copper | Chrome | ||||||||||||||
LEMO ERA.1S.275.CLL | IP50 | Push-Pull | -55 °C | 250 °C | Female Socket, Receptacle | Bulkhead - Rear Side Nut | Brass | 1 Connector, 1 Lockwasher, 1 Nut | Gold | 1000 | Solder | Coaxial | Polyetheretherketone (PEEK) | 179B, 187A, 223, 302, 400, 59B, RG-58C | 75 Ohms | Silver | Solder Cup | Beryllium Copper | Chrome |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.26 | |
| 10 | $ 15.47 | |||
Description
General part information
ERA.1S Series
1 Position Circular Connector Receptacle, Female Sockets Solder Cup
