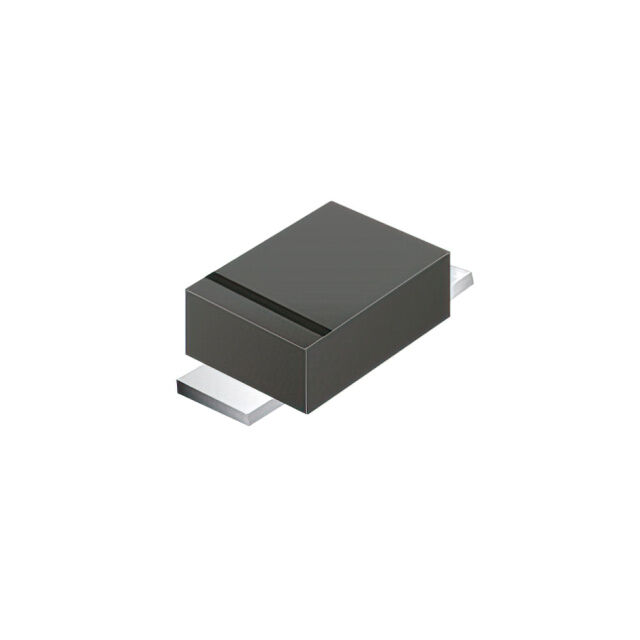

SS36BF-HF

Active

Comchip Technology

DIODE SCHOTTKY 60V 3A SMBF

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 60V 3A SMBF

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SS36BF-HF	SS36 Series

Current - Average Rectified (Io)	3 A	3 A
Current - Reverse Leakage @ Vr	500 µA	500 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	150 °C	125 - 150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	SMB Flat Leads, DO-221AA	SMB Flat Leads, DO-221AA, SMB, DO-214AA, DO-214AC, SMA, SMC, DO-214AB
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	SMBF	SMBF, DO-214AA, DO-214AC (SMA), DO-214AB (SMC)
Supplier Device Package	-	SMB
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V	60 V
Voltage - Forward (Vf) (Max) @ If	700 mV	700 mV

DIODE SCHOTTKY 60V 3A SMBF

Part	Mounting Type	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Speed	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Supplier Device Package
Comchip Technology SS36BF-HF	Surface Mount	SMBF	150 °C	-55 °C	700 mV	500 µA	3 A	200 mA, 500 ns	Schottky	60 V	DO-221AA, SMB Flat Leads
Comchip Technology SS36B-HF	Surface Mount	DO-214AA	150 °C	-55 °C	700 mV	500 µA	3 A	200 mA, 500 ns	Schottky	60 V	DO-214AA, SMB	SMB
Comchip Technology SS36-HF	Surface Mount	DO-214AC (SMA)	125 °C	-55 °C	700 mV	500 µA	3 A	200 mA, 500 ns	Schottky	60 V	DO-214AC, SMA
Comchip Technology SS36C-HF	Surface Mount	DO-214AB (SMC)	150 °C	-55 °C	700 mV	500 µA	3 A	200 mA, 500 ns	Schottky	60 V	DO-214AB, SMC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 60 V 3A Surface Mount SMBF
