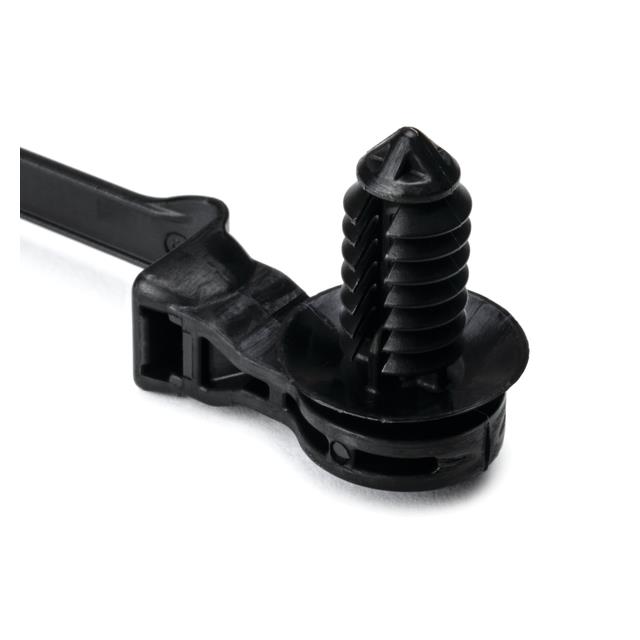

Specification	157-00165

Bundle Diameter	1.97 in
Color	Black
Features	Heat Stabilized, Impact Modified
Length - Actual	0.732 ft
Length - Approximate	8.75 in
Material	Nylon 6, 6, Polyamide (PA66)
Mounting Type	Push Mount, Fir Tree
Tensile Strength	50 lbs
Width	0.201 in
Wire/Cable Tie Type	Locking, Standard

157-00 Series

Cable Tie Mounts 1-Pc Cable Tie/Fir Tree Mount with Disc, 7.1"L, 0.24 - 0.48" mounting hole, PA66, natural,

...

Part	Mounting Type	Length - Approximate	Bundle Diameter	Tensile Strength	Color	Features	Wire/Cable Tie Type	Material	Length - Actual	Width
HELLERMANNTYTON 156-02258	Swivel Clip Mount	1 in	0.86 in	50 lbs	Black	Heat Stabilized Impact Modified UV Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.089 ft
HELLERMANNTYTON 156-02231	Edge Clip	8 in	1.97 in	50 lbs	Black	Heat Stabilized Impact Modified UV Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.663 ft	0.181 in
HELLERMANNTYTON 156-01722	Swivel Clip Mount	0.75 in	0.39 in	50 lbs	Black	Heat Stabilized Impact Modified UV Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.057 ft
HELLERMANNTYTON 156-01790	Swivel Clip Mount	1 in	0.86 in	50 lbs	Black	Heat Stabilized Impact Modified UV Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.089 ft
HELLERMANNTYTON 156-02265	Fir Tree Push Mount	8 in	3.15 in	50 lbs	Black		Locking Standard	6 Nylon 6 Polyamide (PA66)	0.663 ft	0.694 in
HELLERMANNTYTON 156-02241	Swivel Clip Mount	0.5 in	0.31 in	51 lbs	Black		Locking Standard	6 Nylon 6 Polyamide (PA66)	0.043 ft	0.394 in
HELLERMANNTYTON 148-00095	Wire Clamp Mount	6 in	1.38 in	50 lbs	Black	Heat Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.492 ft	0.181 in
HELLERMANNTYTON 156-02248	Swivel Clip Mount	1.5 in	1.14 in	50 lbs	Black	Heat Stabilized Impact Modified UV Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.134 ft
HELLERMANNTYTON 156-01785	Swivel Clip Mount	0.5 in	0.35 in	50 lbs	Black	Heat Stabilized Impact Modified UV Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.043 ft
HELLERMANNTYTON T50RTM250HSC2	Fir Tree Push Mount	8 in	1.97 in	50 lbs	Black		Locking Standard	6 Nylon 6 Polyamide (PA66)	0.667 ft	0.18 in
