9423 0605000

Active

Belden Inc.

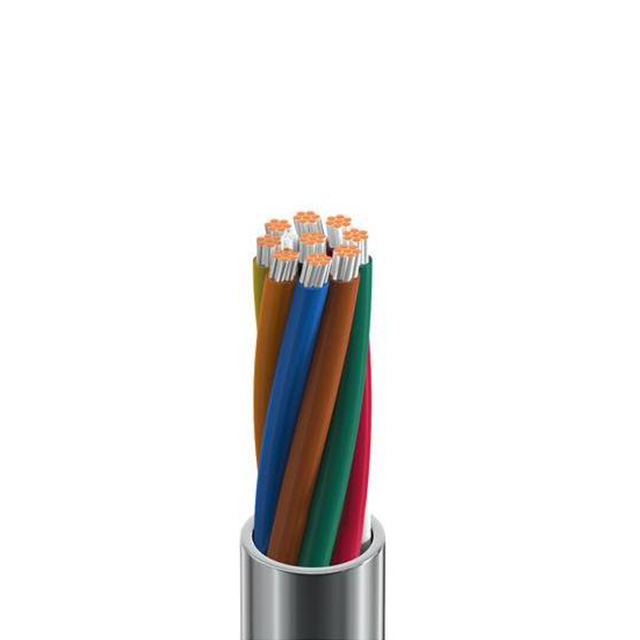

CABLE 9COND 22AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 9COND 22AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9423 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	6.2 mm
Jacket (Insulation) Diameter [diameter]	0.244 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Number of Conductors	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Type	Jacket Color	Usage	Length [x]	Length [x]	Ratings	Conductor Insulation	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 9423 060500	9	22 AWG	-20 C	80 C	Copper Tinned	Multi-Conductor	Chrome	Audio Control Instrumentation	500 '	152.4 m	UL Style 2576	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	6.2 mm	0.244 in	7	30 AWG
Belden Inc. 9423 0605000	9	22 AWG	-20 C	80 C	Copper Tinned	Multi-Conductor	Chrome	Audio Control Instrumentation			UL Style 2576	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	6.2 mm	0.244 in	7	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 2.46

General part information

9 Conductor Multi-Conductor Cable Chrome 22 AWG 5000' (1524.0m)
