Description
General part information

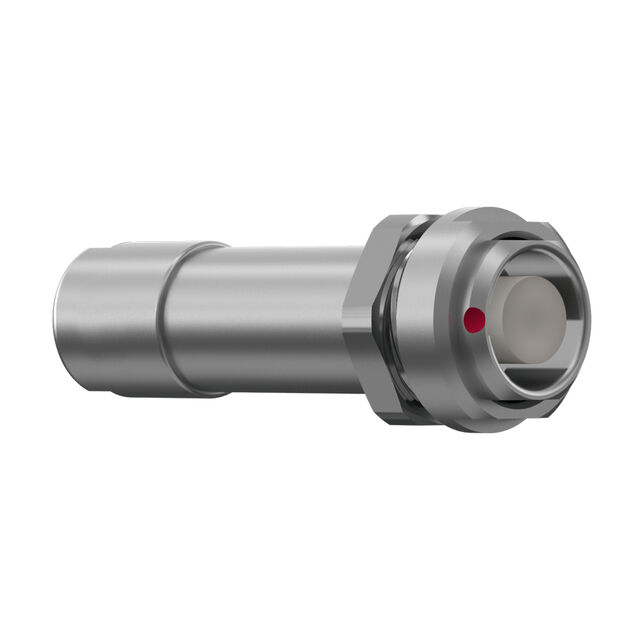

G60L0C-MD2LFG9-4200
2 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | G60L0C-MD2LFG9-4200 |
|---|---|
| Applications | Testing Equipment & Measurement, Medical, Military, Industrial |
| Backshell Material | Copper Alloy |
| Cable Opening (Max) | 0.165 in |
| Cable Opening (Min) | 0.118 in |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 7.5 A |
| Fastening Type | Push-Pull |
| Features | Backshell, Ground |
| Ingress Protection Description | Dust Protected |
| Ingress Protection IP Rating | IP50 |
| Mounting Feature | Bulkhead, Front or Rear Side Nut |
| Mounting Type | Free Hanging (In-Line), Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation Angle | 0 ° |
| Plating | Chrome |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Copper Alloy |
| Shell Size - Insert | 0 |
| Shell Size - Insert | 0 |
| Shielding | Unshielded |
| Termination | Solder Cup |
