AK1110AEU50

Obsolete

Asahi Kasei Microdevices/AKM

IC REG LINEAR 5V/5V 220MA 10PLP

Search across all available documentation for this part.

Obsolete

Asahi Kasei Microdevices/AKM

IC REG LINEAR 5V/5V 220MA 10PLP

Technical Specifications

Parameters and characteristics for this part

Specification	AK1110AEU50

Control Features	Enable
Current - Output	220 mA
Current - Quiescent (Iq)	5 mA
Current - Supply (Max) [Max]	7 mA
Mounting Type	Surface Mount
Number of Regulators	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	10-UFDFN Exposed Pad
Protection Features	Over Current, Thermal Shutdown
PSRR [Max]	100 dB, 83 dB
PSRR [Min]	70 dB, 76 dB

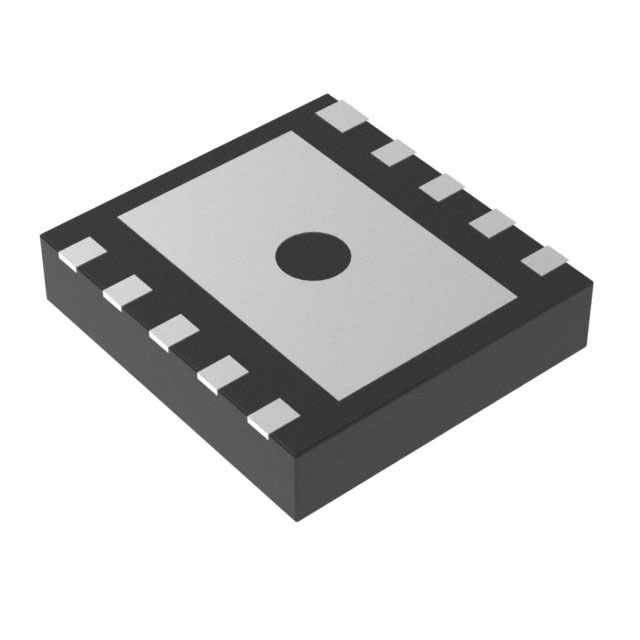

Supplier Device Package	10-PLP-2725
Voltage - Input (Max) [Max]	14 V
Voltage - Output (Min/Fixed)	5 V
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max) [Max]	0.6 V, 0.6 V

IC REG LINEAR 5V/5V 220MA 10PLP

Part	Control Features	PSRR [Max]	PSRR [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed)	Protection Features	Package / Case	Current - Supply (Max) [Max]	Number of Regulators	Current - Output	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Mounting Type	Output Configuration	Supplier Device Package
Asahi Kasei Microdevices/AKM AK1110AEU50	Enable	83 dB, 100 dB	70 dB, 76 dB	85 °C	-40 °C	1.81 mOhm	0.6 V, 0.6 V	5 V	5 V	Over Current, Thermal Shutdown	10-UFDFN Exposed Pad	7 mA	2	220 mA	5 mA	14 V	Surface Mount	Positive	10-PLP-2725

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 2 Output 220mA 10-PLP-2725
