WI-M-14-25-0

Active

MUELLER ELECTRIC

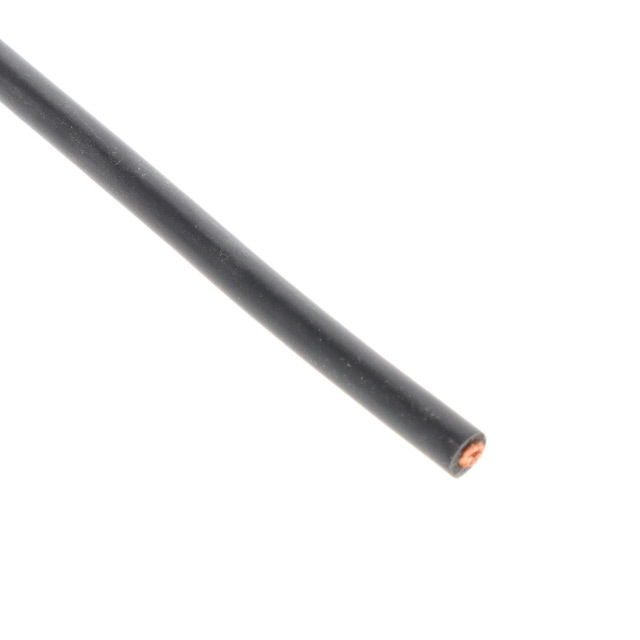

TEST LEAD WIRE, 14AWG, BLACK, 7.62M ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MUELLER ELECTRIC

TEST LEAD WIRE, 14AWG, BLACK, 7.62M ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WI-M-14-25-0	WI-M-14 Series

Conductor Material	Copper	Copper
Conductor Strand [custom]	420	420
Conductor Strand [custom]	0.0031 in	0.0031 in
Jacket (Insulation) Diameter [diameter]	4.7 mm	4.7 mm
Jacket (Insulation) Diameter [diameter]	0.185 in	0.185 in
Jacket Color	Black	Red, Black
Length	-	10 ft
Length	-	3.05 m
Length [x]	25 ft	25 ft
Length [x]	7.62 m	7.62 m
Operating Temperature	200 °C	200 °C
Operating Temperature	-	180 °C
Operating Temperature	-	-40 °C
Voltage	1100 V	1100 V
Wire Gauge	13.5 AWG	13.5 AWG

TEST LEAD WIRE, 14AWG, RED, 7.62M ROHS COMPLIANT: YES

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket Color	Operating Temperature	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Wire Gauge	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length
MUELLER ELECTRIC WI-M-14-25-2	4.7 mm	0.185 in	Copper	Red	200 °C	420	0.0031 in	25 ft	7.62 m	13.5 AWG	1100 V
MUELLER ELECTRIC WI-M-14-10-0	4.7 mm	0.185 in	Copper	Black		420	0.0031 in			13.5 AWG	1100 V	180 °C	-40 °C	10 ft	3.05 m
MUELLER ELECTRIC WI-M-14-10-2	4.7 mm	0.185 in	Copper	Red	200 °C	420	0.0031 in			13.5 AWG	1100 V			10 ft	3.05 m
MUELLER ELECTRIC WI-M-14-25-0	4.7 mm	0.185 in	Copper	Black	200 °C	420	0.0031 in	25 ft	7.62 m	13.5 AWG	1100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 AWG Test Lead Wire 420/0.0031" Black 1100V 25.00' (7.62m)
