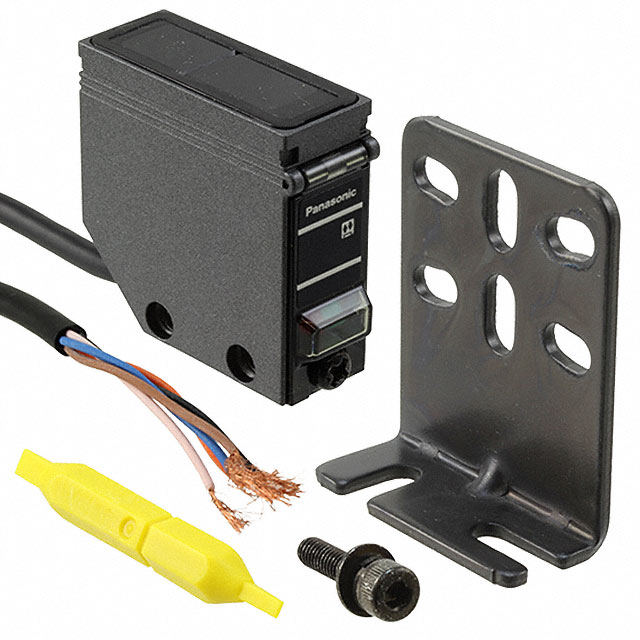

RX-D700
ObsoletePanasonic Industrial Automation Sales
SENSOR REFLECTIVE 700MM NPN OPEN
RX-D700
ObsoletePanasonic Industrial Automation Sales
SENSOR REFLECTIVE 700MM NPN OPEN
Description
General part information
RX-D700
Reflective Optical Sensor 27.559" (700mm) NPN - Open Collector
Technical Specifications
Parameters and characteristics for this part
| Specification | RX-D700 |
|---|---|
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Infrared |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NPN - Open Collector |
| Response Time | 1 ms |
| Sensing Distance | 27.559 " |
| Sensing Method | Reflective |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
