IRFR7440TRPBF
ObsoleteInfineon Technologies
MOSFET TRANSISTOR, N CHANNEL, 90 A, 40 V, 0.0019 OHM, 10 V, 3 V ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
IRFR7440TRPBF
ObsoleteInfineon Technologies
MOSFET TRANSISTOR, N CHANNEL, 90 A, 40 V, 0.0019 OHM, 10 V, 3 V ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IRFR7440TRPBF |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 90 A |
| Drain to Source Voltage (Vdss) | 40 V |
| Drive Voltage (Max Rds On, Min Rds On) | 6 V, 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 134 nC |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |

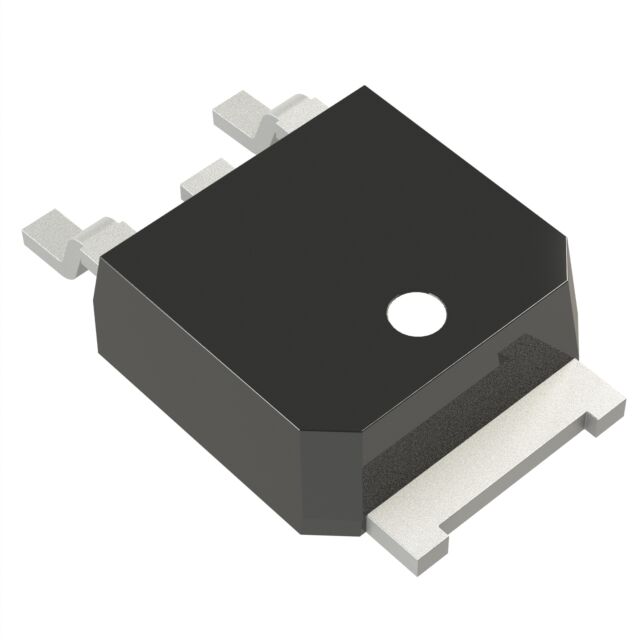

| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Power Dissipation (Max) | 140 W |
| Rds On (Max) @ Id, Vgs | 2.4 mOhm |
| Supplier Device Package | PG-TO252-3 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 3.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.00 | |
| 10 | $ 1.28 | |||
| 100 | $ 0.87 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.63 | |||
| Digi-Reel® | 1 | $ 2.01 | ||
| 10 | $ 1.29 | |||
| 100 | $ 0.87 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.64 | |||
| Tape & Reel (TR) | 2000 | $ 0.58 | ||
| 4000 | $ 0.55 | |||
Description
General part information
IRFR7440 Series
N-Channel 40 V 90A (Tc) 140W (Tc) Surface Mount PG-TO252-3
