A5973D
ActiveSTMicroelectronics

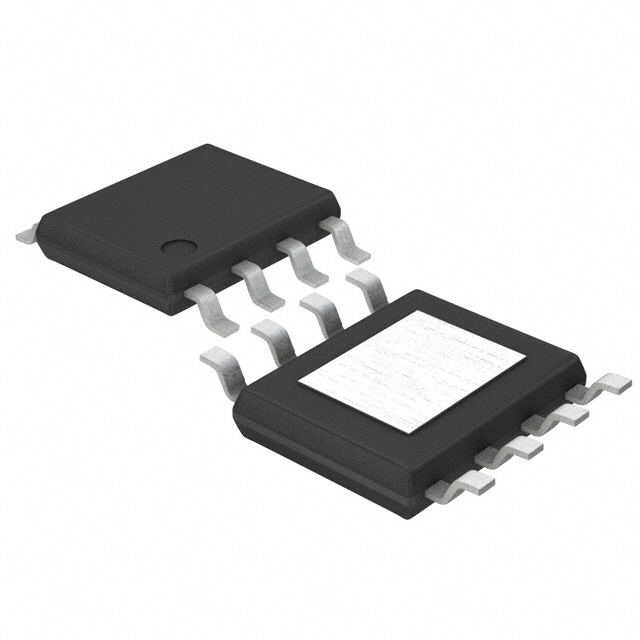

IC REG BUCK ADJ 2A 8HSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A5973D
ActiveSTMicroelectronics
IC REG BUCK ADJ 2A 8HSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A5973D |
|---|---|
| Current - Output | 2 A |
| Frequency - Switching | 250 kHz |
| Function | Step-Down |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 0.154 in |
| Package / Case | 8-SOIC |
| Package / Case | 3.9 mm |
| Qualification | AEC-Q100 |
| Supplier Device Package | 8-HSOP |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 4 V |
| Voltage - Output (Max) [Max] | 35 V |
| Voltage - Output (Min/Fixed) | 1.235 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
A5973 Series
IC REG BUCK ADJ 2A 8HSOP
| Part | Output Configuration | Frequency - Switching | Output Type | Mounting Type | Current - Output | Supplier Device Package | Voltage - Output (Max) [Max] | Synchronous Rectifier | Voltage - Input (Min) [Min] | Voltage - Output (Min/Fixed) | Package / Case | Package / Case | Package / Case | Voltage - Input (Max) [Max] | Topology | Qualification | Grade | Function | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics A5973D | Positive | 250 kHz | Adjustable | Surface Mount | 2 A | 8-HSOP | 35 V | 4 V | 1.235 V | 0.154 in | 8-SOIC | 3.9 mm | 36 V | Buck | AEC-Q100 | Automotive | Step-Down | 1 | 150 °C | -40 °C |
Description
General part information
A5973 Series
Buck Switching Regulator IC Positive Adjustable 1.235V 1 Output 2A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
