JA3D-C1001069

Active

Jabil Inc.

ABS 1400 LW BLACK, 2.85MM, 1KG S

Search across all available documentation for this part.

Active

Jabil Inc.

ABS 1400 LW BLACK, 2.85MM, 1KG S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	25	$ 48.75

General part information

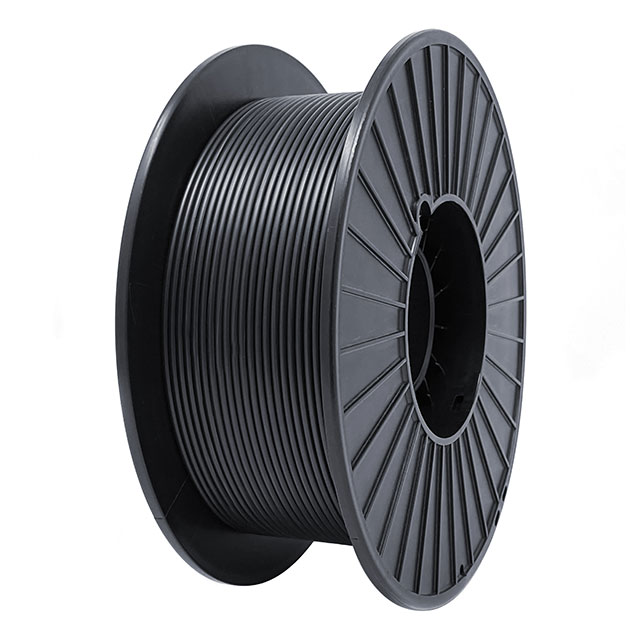

3D Printing Filament Black ABS (Acrylonitrile Butadiene Styrene) 0.112" (2.85mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	JA3D-C1001069	JA3D Series

Color	Black	Black, Natural, White, Gray, Blue
Density	-	1.05 - 1.24 g/cmł
Density [Max]	1.12 g/cm³	1.12 - 1.18 g/cm³
Density [Min]	1.1 g/cm³	1.05 - 1.1 g/cm³
Features	Reinforced	ESD Safe, Reinforced, Elastomeric, Wear & Friction, Wear & Friction, Flame-Retardant
Filament Diameter [diameter]	2.85 mm	1.75 - 2.85 mm
Filament Diameter [diameter]	0.112 in	0.07 - 0.112 in
Filament Material	ABS (Acrylonitrile Butadiene Styrene)	PETG (Polyethylene Terephthalate Glycol-modified), ABS (Acrylonitrile Butadiene Styrene), TPE (Thermoplastic Elastomer), TPU (Thermoplastic Polyurethane), PA (Polyamide), PC (Polycarbonate)
Flex Strength	59.8 Mpa	59.8 - 110 Mpa
Operating Temperature	-	220 - 285 °C
Operating Temperature	-	230 - 305 °C
Operating Temperature [custom]	295 °C, 275 °C	230 - 295 °C
Tensile Strength	35.3 Mpa	6 - 66 Mpa

PETG 0800 ESD, 1.75MM, 0.75KG SP

Part	Features	Filament Material	Filament Diameter [diameter]	Filament Diameter [diameter]	Color	Flex Strength	Density [Max]	Density [Min]	Operating Temperature [custom]	Tensile Strength	Density	Operating Temperature [Min]	Operating Temperature [Max]
Jabil Inc. JA3D-C1001248	ESD Safe	PETG (Polyethylene Terephthalate Glycol-modified)	1.75 mm	0.07 in
Jabil Inc. JA3D-C1001068	Reinforced	ABS (Acrylonitrile Butadiene Styrene)	1.75 mm	0.07 in	Black	59.8 Mpa	1.12 g/cm³	1.1 g/cm³	275 °C, 295 °C	35.3 Mpa
Jabil Inc. JA3D-C1001135	Elastomeric, Wear & Friction	TPE (Thermoplastic Elastomer)	2.85 mm	0.112 in	Black					6 Mpa	1.05 g/cmł	240 °C	250 °C
Jabil Inc. JA3D-C1001137	Elastomeric, Wear & Friction	TPE (Thermoplastic Elastomer)	1.75 mm	0.07 in	Natural				230 °C, 270 °C	11 Mpa	1.05 g/cmł
Jabil Inc. JA3D-C1001141	Elastomeric, Wear & Friction	TPE (Thermoplastic Elastomer)	1.75 mm	0.07 in	Black		1.18 g/cm³	1.05 g/cm³	230 °C, 270 °C	11 Mpa
Jabil Inc. JA3D-C1001031	Elastomeric, Wear & Friction	TPU (Thermoplastic Polyurethane)	2.85 mm	0.112 in	Natural						1.2 g/cm³	220 °C	230 °C
Jabil Inc. JA3D-C1001029		PETG (Polyethylene Terephthalate Glycol-modified)	2.85 mm	0.112 in	Natural						1.24 g/cmł	240 °C	250 °C
Jabil Inc. JA3D-C1001280		PA (Polyamide)	2.85 mm	0.112 in	Black
Jabil Inc. JA3D-C1001269		PA (Polyamide)	2.85 mm	0.112 in
Jabil Inc. JA3D-C1001093	Elastomeric, Wear & Friction	TPE (Thermoplastic Elastomer)	2.85 mm	0.112 in	Natural					6 Mpa	1.05 g/cmł	240 °C	250 °C
