Description
General part information

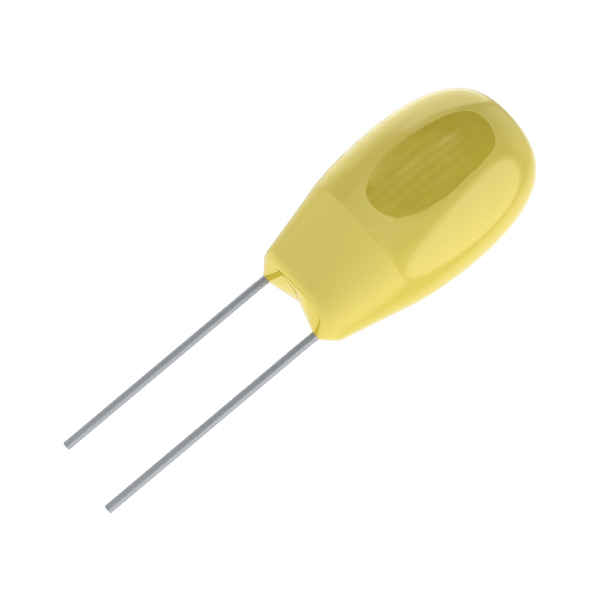

T350C225K035AS7301
2.2 µF Conformal Coated Tantalum Capacitors 35 V Radial, Disc 5Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T350C225K035AS7301 |
|---|---|
| Capacitance | 2.2 µF |
| ESR (Equivalent Series Resistance) | 5 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 0.331 in |
| Lead Spacing | 0.1 in |
| Manufacturer Size Code | C |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.197 in |
| Tolerance | 10 % |
| Type | Conformal Coated |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
