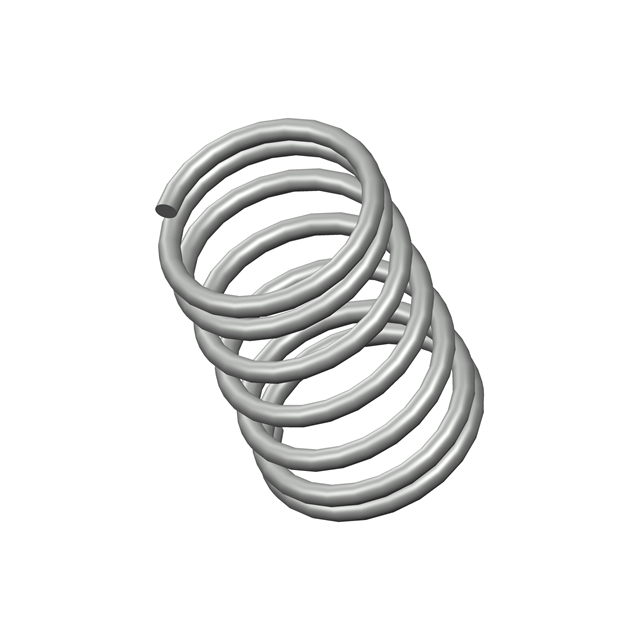

B-67CS
ActiveCentury Spring Corp
COMP O= .343,L= .53,W= .032
B-67CS
ActiveCentury Spring Corp
COMP O= .343,L= .53,W= .032
Description
General part information
B-67CS
COMP O= .343,L= .53,W= .032
Technical Specifications
Parameters and characteristics for this part
| Specification | B-67CS |
|---|---|
| Diameter - Inside | 0.279 in |
| Diameter - Outside | 0.343 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.53 in |
| Material | Hard Drawn |
| Rate (lbs/in) | 10 lbs/in |
| Type | Compression |
| Wire Diameter | 0.032 in |
