PE91104
ActivePasternack

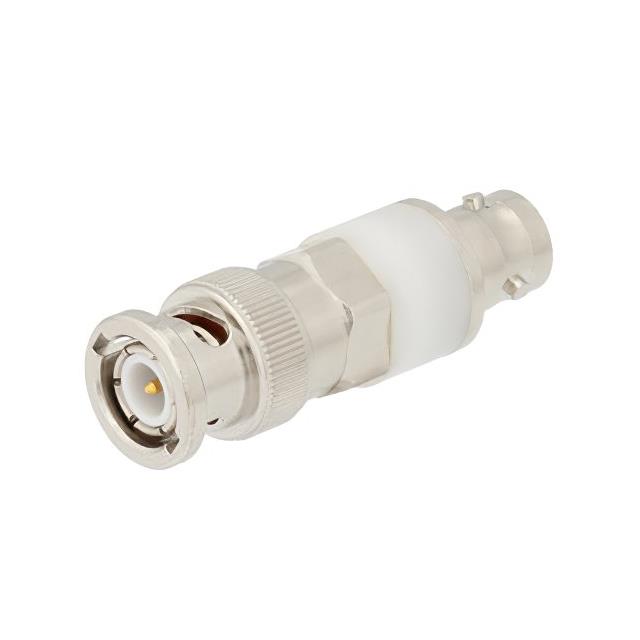

50 OHM BNC MALE TO BNC TRIAX FEM
PE91104
ActivePasternack
50 OHM BNC MALE TO BNC TRIAX FEM
Description
General part information
PE91104
Adapter Coaxial Connector BNC Plug, Male Pin To BNC Triaxial Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE91104 |
|---|---|
| Adapter Series | BNC to BNC Triaxial |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, BNC Plug |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | BNC Triaxial Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
