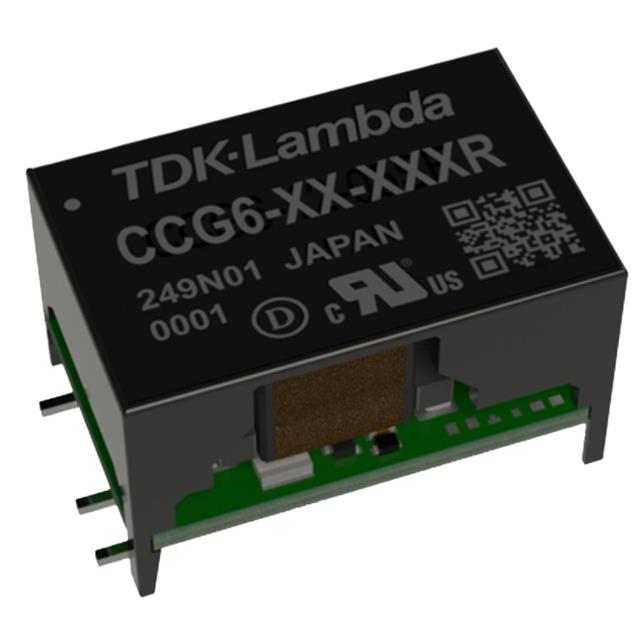

CCG6-48-12SR
ActiveTDK-LAMBDA
DC-DC CONVERTER, 12V, 0.5A ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CCG6-48-12SR |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, CSA, EN, UL, IEC, UKCA |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 87 % |
| Features | OCP, Remote On/Off, Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 95 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 19 mm |
| Size / Dimension [x] | 0.75 in |
| Size / Dimension [y] | 12.4 mm |
| Size / Dimension [y] | 0.49 in |
| Size / Dimension [z] | 11.8 mm |
| Size / Dimension [z] | 0.46 in |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 76 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CCG6-48-12SR
Isolated Module DC DC Converter 1 Output 12V 500mA 18V - 76V Input
