ENC-AL-65X18X20

Active

Tycon Systems Inc.

BOX ALUM 69"L X 20.5"W

Search across all available documentation for this part.

Active

Tycon Systems Inc.

BOX ALUM 69"L X 20.5"W

Technical Specifications

Parameters and characteristics for this part

BOX ALUM 69"L X 20.5"W

Part	Material	Area (L x W)	Area (L x W)	Container Type	Height [z]	Height [z]	Design	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Tycon Systems Inc. ENC-AL-65X18X20	Aluminum, Metal	1414 in²	91.26 m²	Box	25 "	635 mm	Hinged Door, Lid	IP65	69 in	1752.6 mm	520.7 mm	20.5 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1484.95

General part information

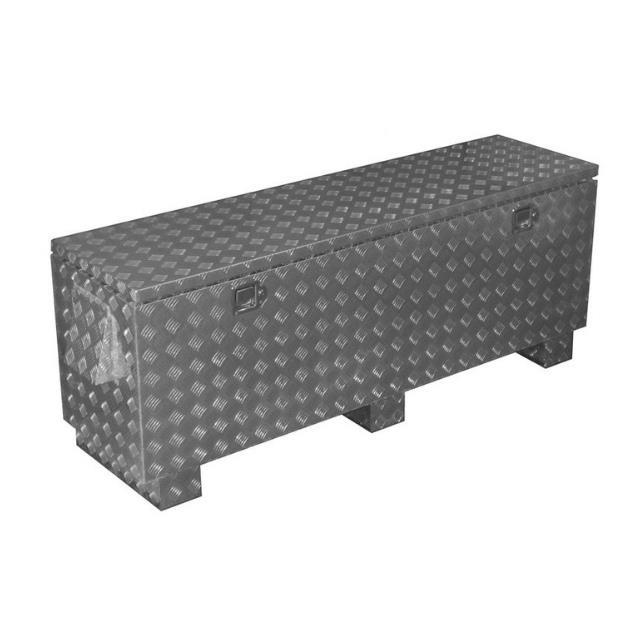

Box Metal, Aluminum Hinged Door, Lid 69.000" L x 20.500" W (1752.60mm x 520.70mm) X 25.000" (635.00mm)

Technical documentation and resources
