1792122
ObsoletePhoenix Contact

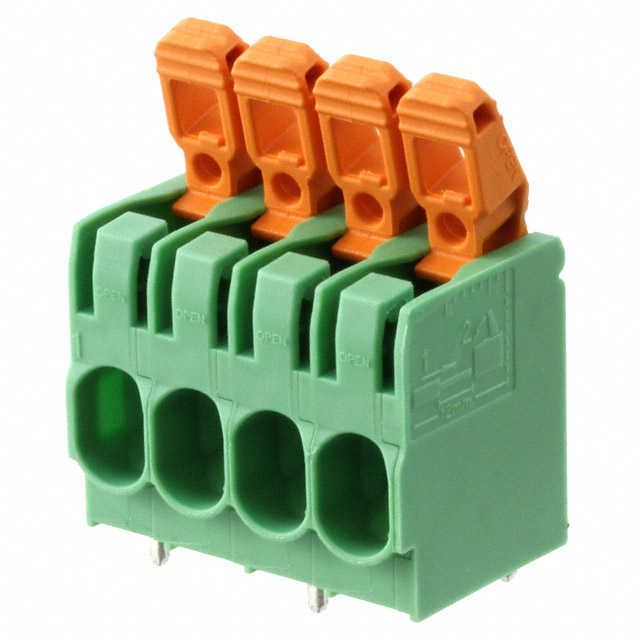

TERM BLK 4POS SIDE ENT 7.5MM PCB
1792122
ObsoletePhoenix Contact
TERM BLK 4POS SIDE ENT 7.5MM PCB
Description
General part information
1792122
4 Position Wire to Board Terminal Block Horizontal with Board 0.295" (7.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1792122 |
|---|---|
| Color | Green |
| Features | Lever Actuated |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.295 in |
| Positions Per Level | 4 |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
