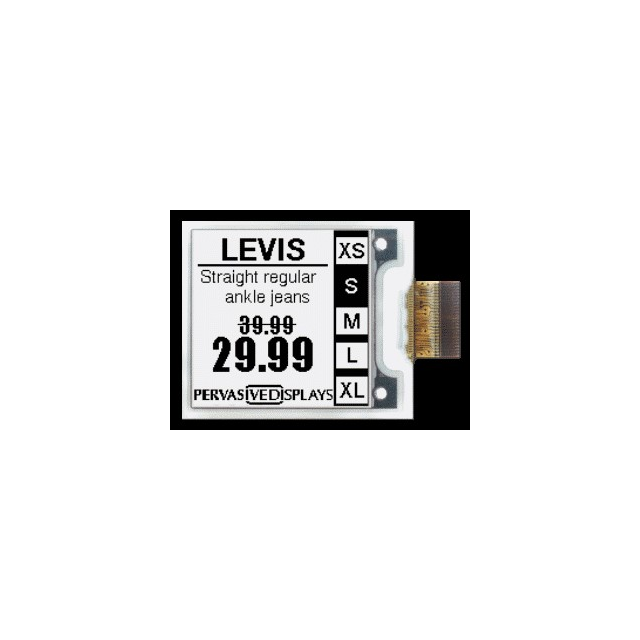

E2154CS091

Obsolete

Pervasive Displays

GRAPHIC DISPLAY TFT BLACK 1.54"

Search across all available documentation for this part.

Obsolete

Pervasive Displays

GRAPHIC DISPLAY TFT BLACK 1.54"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E2154CS091	E2154 Series

Background Color	White	White
Backlight	Without Backlight	Without Backlight
Diagonal Screen Size [x]	1.54 in	1.54 in
Diagonal Screen Size [x]	39.12 mm	39.12 mm
Display Mode	Reflective	Reflective
Display Type	TFT - Electronic Paper Display (EPD)	TFT - Electronic Paper Display (EPD), TFT - Color
Dot Pitch [x]	0.18 mm	0.18 mm
Dot Pitch [y]	0.18 mm	0.18 mm
Dot Pixels [x]	152 pixels	152 pixels
Dot Pixels [y]	152 pixels	152 pixels
Graphics Color	Black	Black, Red, White
Interface	SPI	SPI
Viewing Area [x]	27.51 mm	27.51 mm
Viewing Area [y]	27.51 mm	27.51 mm

GRAPHIC DISPLAY TFT BLACK RED WH

Part	Interface	Display Type	Viewing Area [y]	Viewing Area [x]	Dot Pixels [x]	Dot Pixels [y]	Diagonal Screen Size [x]	Diagonal Screen Size [x]	Backlight	Graphics Color	Dot Pitch [x]	Dot Pitch [y]	Display Mode	Background Color
Pervasive Displays E2154FS091	SPI	TFT - Electronic Paper Display (EPD)	27.51 mm	27.51 mm	152 pixels	152 pixels	1.54 in	39.12 mm	Without Backlight	Black, Red, White	0.18 mm	0.18 mm	Reflective
Pervasive Displays E2154CS091	SPI	TFT - Electronic Paper Display (EPD)	27.51 mm	27.51 mm	152 pixels	152 pixels	1.54 in	39.12 mm	Without Backlight	Black	0.18 mm	0.18 mm	Reflective	White
Pervasive Displays E2154PS0C1	SPI	TFT - Color			152 pixels	152 pixels	1.54 in	39.12 mm	Without Backlight	Black, White	0.18 mm	0.18 mm
Pervasive Displays E2154CS0C1	SPI	TFT - Electronic Paper Display (EPD)	27.51 mm	27.51 mm	152 pixels	152 pixels	1.54 in	39.12 mm		Black, White	0.18 mm	0.18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Reflective Black TFT - Electronic Paper Display (EPD) SPI 1.54" (39.12mm) 152 x 152
