87631-7

Active

TE Connectivity AMP Connectors

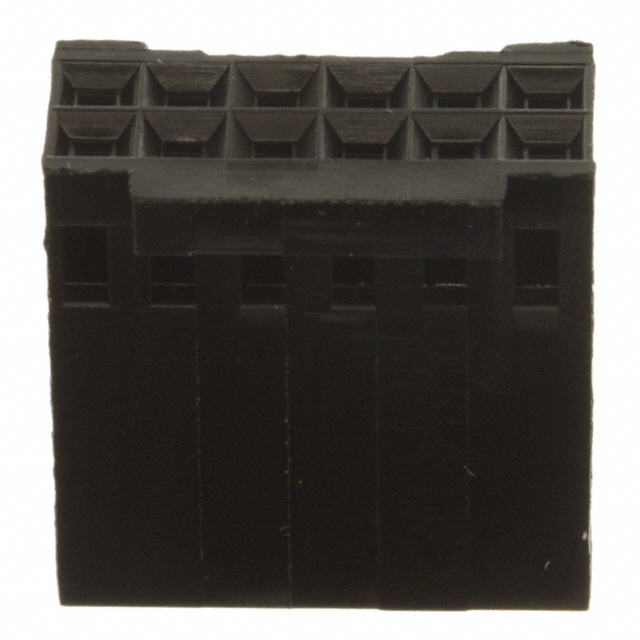

CONN RCPT HSG 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

87631-7

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 12POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.75
		10	$ 1.49
		25	$ 1.39
		50	$ 1.33
		100	$ 1.26
		250	$ 1.18
		500	$ 1.13
		1000	$ 1.07
		2500	$ 1.01

Description

General part information

87631 Series

12 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Specification	87631-7	87631 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Detent Lock	Detent Lock
Insulation Material	Thermoplastic	Thermoplastic, Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	12	6 - 70
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Mounting Type	Number of Positions	Color	Number of Rows	Fastening Type	Contact Type	Pitch [x]	Pitch [x]	Contact Termination	Row Spacing [x]	Row Spacing	Insulation Material
TE Connectivity AMP Connectors 87631-2	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Free Hanging (In-Line)	6	Black	2	Detent Lock	Female Socket	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm	Thermoplastic
TE Connectivity AMP Connectors 4-87631-0	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Free Hanging (In-Line)	44	Black	2	Detent Lock	Female Socket	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm	Glass Filled, Nylon, Polyamide (PA)
TE Connectivity AMP Connectors 3-87631-2	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Free Hanging (In-Line)	36	Black	2	Detent Lock	Female Socket	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm	Glass Filled, Nylon, Polyamide (PA)
TE Connectivity AMP Connectors 5-87631-2	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Free Hanging (In-Line)	60	Black	2	Detent Lock	Female Socket	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm	Glass Filled, Nylon, Polyamide (PA)
TE Connectivity AMP Connectors 87631-9	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Free Hanging (In-Line)	14	Black	2	Detent Lock	Female Socket	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm	Thermoplastic
TE Connectivity AMP Connectors 2-87631-3	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Free Hanging (In-Line)	28	Black	2	Detent Lock	Female Socket	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm	Glass Filled, Nylon, Polyamide (PA)
TE Connectivity AMP Connectors 87631-3	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Free Hanging (In-Line)	8	Black	2	Detent Lock	Female Socket	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm	Thermoplastic
TE Connectivity AMP Connectors 87631-4	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Free Hanging (In-Line)	8	Black	2	Detent Lock	Female Socket	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm	Thermoplastic
TE Connectivity AMP Connectors 5-87631-5	Receptacle			Contacts Not Included	Free Hanging (In-Line)	70	Black	2	Detent Lock	Female Socket	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm
TE Connectivity AMP Connectors 87631-1	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Free Hanging (In-Line)	6	Black	2	Detent Lock	Female Socket	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm	Thermoplastic
