0408HPPBZ
ActiveKanebridge
SELF-TAPPING SCREW - HIGH-LOW -
0408HPPBZ
ActiveKanebridge
SELF-TAPPING SCREW - HIGH-LOW -
Description
General part information
0408HPPBZ

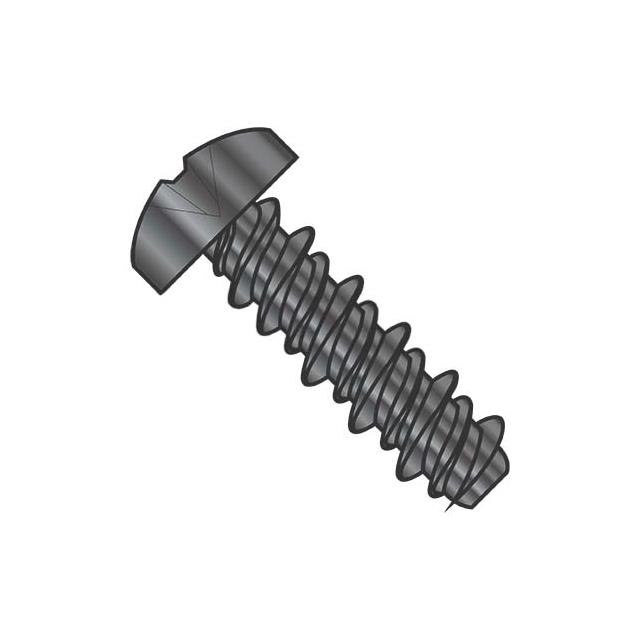

#4-24 Pan Head Self-Tapping Screw Phillips Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 0408HPPBZ |
|---|---|
| Drive Type | Phillips |
| Features | Standard |
| Head Diameter | 0.187 in |
| Head Height | 0.067 in |
| Length - Below Head | 0.5 in |
| Length - Overall | 0.567 in |
| Material | Steel |
| Plating | Black, Zinc |
| Screw Head Type | Pan Head |
| Thread Size (Max) | 24 mm |
| Thread Size (Min) | 4 mm |
| Type | Self-Tapping Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
