YC104-FR-072K2L

Active

YAGEO

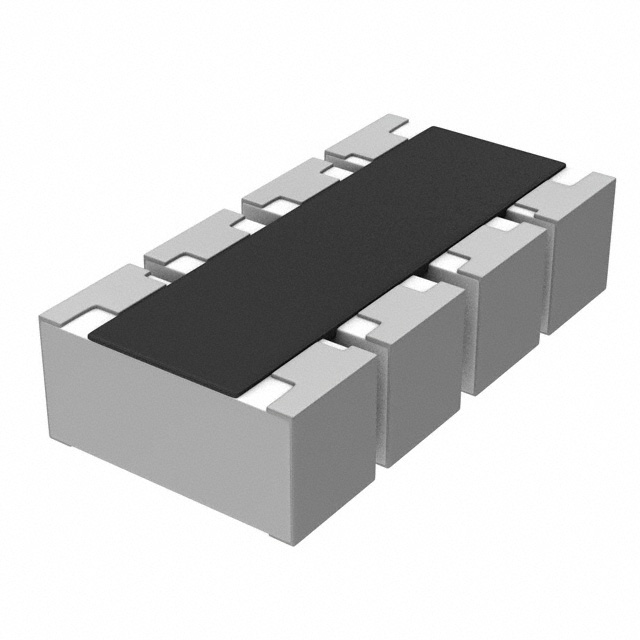

RES ARRAY 4 RES 2.2K OHM 0602

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsChip Resistor Packing Datasheet +3

YC104-FR-072K2L

Active

YAGEO

RES ARRAY 4 RES 2.2K OHM 0602

Deep-Dive with AI

DocumentsChip Resistor Packing Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YC104-FR-072K2L	YC104-FR Series

Applications	SDRAM, DDRAM	SDRAM, DDRAM
Circuit Type	Isolated	Isolated
Grade	Automotive	Automotive
Height - Seated (Max)	0.45 mm	0.45 mm
Height - Seated (Max) [Max] [z]	0.018 "	0.018 "
Mounting Type	Surface Mount	Surface Mount
Number of Pins	8	8
Number of Resistors	4	4
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0502 (1406 Metric) Convex, Long Side Terminals	0502 (1406 Metric) Convex, Long Side Terminals
Power Per Element	31 mW	31 mW
Qualification	AEC-Q200	AEC-Q200
Resistance (Ohms)	2.2 kOhms	1 - 27000 kOhms
Resistance (Ohms)	-	10k, 2k, 3k, 4.7k, 27.4k
Size / Dimension [x]	0.055 in	0.055 in
Size / Dimension [x]	1.4 mm	1.4 mm
Size / Dimension [y]	0.6 mm	0.6 mm
Size / Dimension [y]	0.024 "	0.024 "
Temperature Coefficient	200 ppm/°C	200 ppm/°C
Tolerance	1 %	1 %

YC104-FR Series

RES ARRAY 4 RES 10K OHM 0602

Part	Number of Resistors	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Pins	Tolerance	Circuit Type	Package / Case	Power Per Element	Qualification	Mounting Type	Resistance (Ohms)	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Applications	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Resistance (Ohms)
YAGEO YC104-FR-0710KL	4	0.6 mm	0.024 "	0.055 in	1.4 mm	8	1 %	Isolated	0502 (1406 Metric) Convex, Long Side Terminals	31 mW	AEC-Q200	Surface Mount	10k	Automotive	-55 °C	125 °C	200 ppm/°C	DDRAM, SDRAM	0.45 mm	0.018 "
YAGEO YC104-FR-073K3L	4	0.6 mm	0.024 "	0.055 in	1.4 mm	8	1 %	Isolated	0502 (1406 Metric) Convex, Long Side Terminals	31 mW	AEC-Q200	Surface Mount		Automotive	-55 °C	125 °C	200 ppm/°C	DDRAM, SDRAM	0.45 mm	0.018 "	3.3 kOhms
YAGEO YC104-FR-071K5L	4	0.6 mm	0.024 "	0.055 in	1.4 mm	8	1 %	Isolated	0502 (1406 Metric) Convex, Long Side Terminals	31 mW	AEC-Q200	Surface Mount		Automotive	-55 °C	125 °C	200 ppm/°C	DDRAM, SDRAM	0.45 mm	0.018 "	1.5 kOhms
YAGEO YC104-FR-072KL	4	0.6 mm	0.024 "	0.055 in	1.4 mm	8	1 %	Isolated	0502 (1406 Metric) Convex, Long Side Terminals	31 mW	AEC-Q200	Surface Mount	2k	Automotive	-55 °C	125 °C	200 ppm/°C	DDRAM, SDRAM	0.45 mm	0.018 "
YAGEO YC104-FR-0710RL	4	0.6 mm	0.024 "	0.055 in	1.4 mm	8	1 %	Isolated	0502 (1406 Metric) Convex, Long Side Terminals	31 mW	AEC-Q200	Surface Mount		Automotive	-55 °C	125 °C	200 ppm/°C	DDRAM, SDRAM	0.45 mm	0.018 "	10 Ohms
YAGEO YC104-FR-071K4L	4	0.6 mm	0.024 "	0.055 in	1.4 mm	8	1 %	Isolated	0502 (1406 Metric) Convex, Long Side Terminals	31 mW	AEC-Q200	Surface Mount		Automotive	-55 °C	125 °C	200 ppm/°C	DDRAM, SDRAM	0.45 mm	0.018 "	1.4 kOhms
YAGEO YC104-FR-071KL	4	0.6 mm	0.024 "	0.055 in	1.4 mm	8	1 %	Isolated	0502 (1406 Metric) Convex, Long Side Terminals	31 mW	AEC-Q200	Surface Mount		Automotive	-55 °C	125 °C	200 ppm/°C	DDRAM, SDRAM	0.45 mm	0.018 "	1 kOhms
YAGEO YC104-FR-073KL	4	0.6 mm	0.024 "	0.055 in	1.4 mm	8	1 %	Isolated	0502 (1406 Metric) Convex, Long Side Terminals	31 mW	AEC-Q200	Surface Mount	3k	Automotive	-55 °C	125 °C	200 ppm/°C	DDRAM, SDRAM	0.45 mm	0.018 "
YAGEO YC104-FR-0727KL	4	0.6 mm	0.024 "	0.055 in	1.4 mm	8	1 %	Isolated	0502 (1406 Metric) Convex, Long Side Terminals	31 mW	AEC-Q200	Surface Mount		Automotive	-55 °C	125 °C	200 ppm/°C	DDRAM, SDRAM	0.45 mm	0.018 "	27000 Ohms
YAGEO YC104-FR-0736RL	4	0.6 mm	0.024 "	0.055 in	1.4 mm	8	1 %	Isolated	0502 (1406 Metric) Convex, Long Side Terminals	31 mW		Surface Mount			-55 °C	125 °C	200 ppm/°C	DDRAM, SDRAM	0.45 mm	0.018 "	36 Ohms
