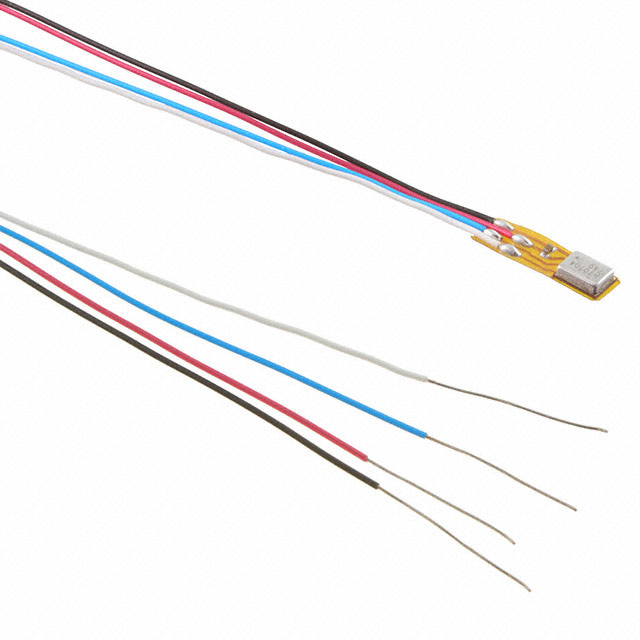

EV_ICS-40740-FX

Obsolete

TDK InvenSense

EVAL BOARD FOR THE ICM-40740 ANA

Search across all available documentation for this part.

Obsolete

TDK InvenSense

EVAL BOARD FOR THE ICM-40740 ANA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EV_ICS-40740-FX	EV_ICS Series

Contents	Board(s)	Board(s)
Function	MEMS Omnidirectional Microphones	MEMS Omnidirectional Microphones
Secondary Attributes	Analog Output	Digital Output, Analog Output
Supplied Contents	Board(s)	Board(s)
Type	Audio	Audio
Utilized IC / Part	ICS-40740	ICS-43432, ICS-51360, ICS-41350, ICS-40740, ICS-52000, ICS-41352, ICS-40181, ICS-40212, ICS-43434

EVALUATION BOARD, ICS-43432, MEMS MICROPHONE

Part	Function	Supplied Contents	Type	Utilized IC / Part	Contents	Secondary Attributes
TDK InvenSense EV_ICS-43432-FX	MEMS Omnidirectional Microphones	Board(s)	Audio	ICS-43432	Board(s)	Digital Output
TDK InvenSense EV_ICS-51360-FX		Board(s)	Audio	ICS-51360	Board(s)	Digital Output
TDK InvenSense EV_ICS-41350-FX	MEMS Omnidirectional Microphones	Board(s)	Audio	ICS-41350	Board(s)	Digital Output
TDK InvenSense EV_ICS-40740-FX	MEMS Omnidirectional Microphones	Board(s)	Audio	ICS-40740	Board(s)	Analog Output
TDK InvenSense EV_ICS-52000-FX	MEMS Omnidirectional Microphones	Board(s)	Audio	ICS-52000	Board(s)	Digital Output
TDK InvenSense EV_ICS-41352-FX		Board(s)	Audio	ICS-41352	Board(s)	Digital Output
TDK InvenSense EV_ICS-40181-FX	MEMS Omnidirectional Microphones		Audio	ICS-40181	Board(s)	Analog Output
TDK InvenSense EV_ICS-40212-FX	MEMS Omnidirectional Microphones	Board(s)	Audio	ICS-40212	Board(s)	Analog Output
TDK InvenSense EV_ICS-43434-FX	MEMS Omnidirectional Microphones	Board(s)	Audio	ICS-43434	Board(s)	Digital Output
TDK InvenSense EV_ICS-40638-FX	MEMS Omnidirectional Microphones	Board(s)	Audio		Board(s)	Analog Output

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ICS-40740 MEMS Omnidirectional Microphones Audio Evaluation Board

Technical documentation and resources
