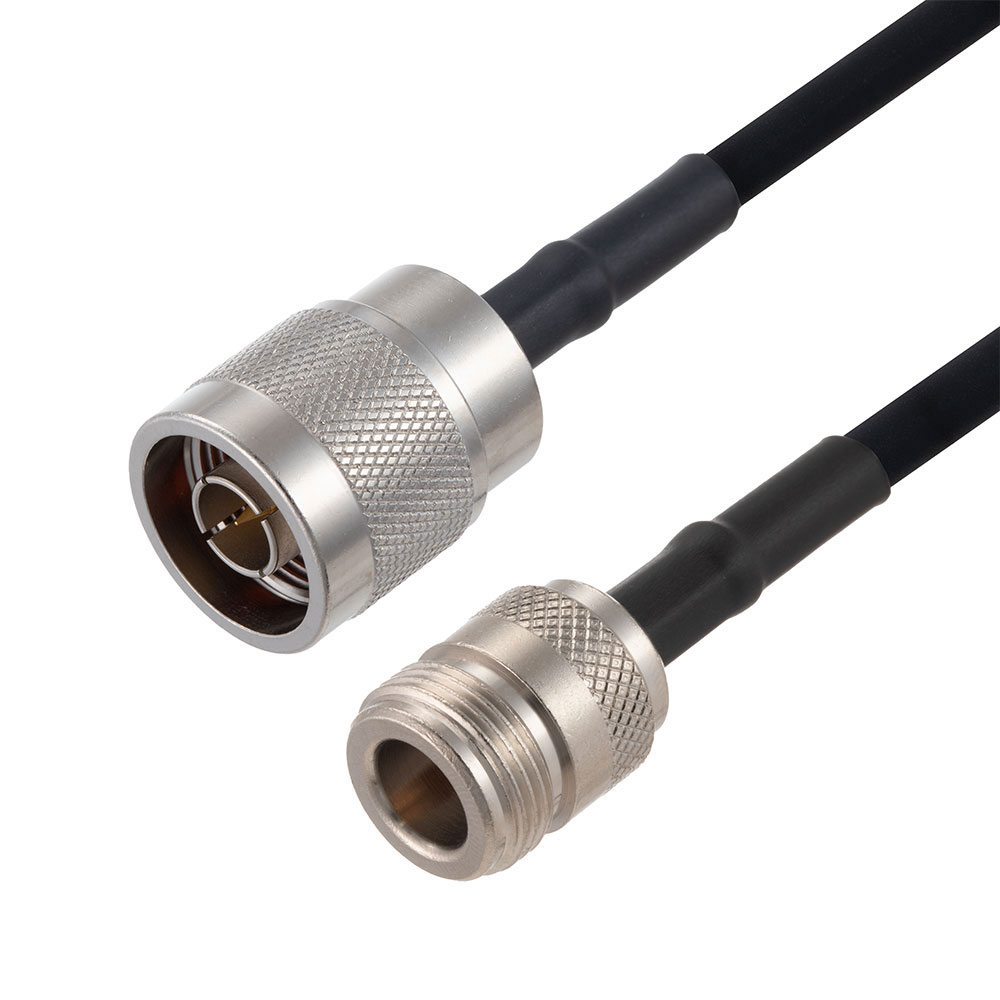

FMCA2777-48
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NJACK 4
FMCA2777-48
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NJACK 4
Description
General part information
FMCA2777-48
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2777-48 |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 48 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
