LF1D-EN21F-2W-A

Active

IDEC Corporation

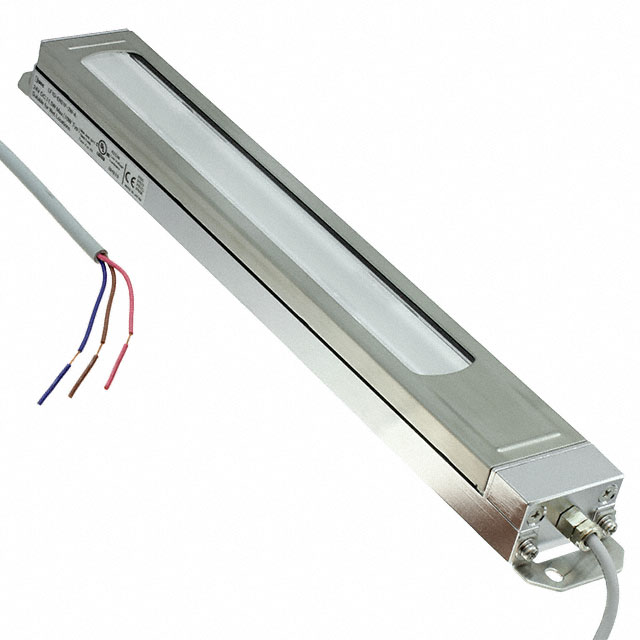

LED LIGHT BAR, WHITE, 1530 LM, 10 W, 24 VDC, 390 MM, IP67F

Search across all available documentation for this part.

Active

IDEC Corporation

LED LIGHT BAR, WHITE, 1530 LM, 10 W, 24 VDC, 390 MM, IP67F

Technical Specifications

Parameters and characteristics for this part

Specification	LF1D-EN21F-2W-A

Approval Agency	cULus, CE
Housing Material	Aluminum (Al)
Illumination Color	White, Cool
Ingress Protection	IP67F/IP69K - Dust Tight, Oil and Water Resistant, Waterproof
Length [x]	15.35 "
Length [x]	390 mm
Lens Type	Flat, Diffused
Luminous Flux	1530 lm
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-30 ░C
Power - Rated	10 W
Profile (W x H) [x]	49.8 mm
Profile (W x H) [x]	1.96 in
Profile (W x H) [y]	29.8 mm
Profile (W x H) [y]	1.17 in
Rated Life	50000 Hours
Termination Style	Cable Leads
Voltage - Supply	24 VDC

LED LIGHT BAR, WHITE, 1530 LM, 10 W, 24 VDC, 390 MM, IP67F

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Supply	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [x]	Profile (W x H) [y]	Ingress Protection	Termination Style	Length [x]	Length [x]	Rated Life	Power - Rated	Illumination Color	Lens Type	Luminous Flux	Housing Material
IDEC Corporation LF1D-EN21F-2W-A	55 °C	-30 ░C	CE, cULus	24 VDC	29.8 mm	49.8 mm	1.96 in	1.17 in	IP67F/IP69K - Dust Tight, Oil and Water Resistant, Waterproof	Cable Leads	15.35 "	390 mm	50000 Hours	10 W	Cool, White	Diffused, Flat	1530 lm	Aluminum (Al)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED LIGHT BAR, WHITE, 1530 LM, 10 W, 24 VDC, 390 MM, IP67F

Technical documentation and resources
