31017107
ActiveMETZ CONNECT USA Inc.
TERM BLOCK HDR 7POS 5MM
31017107
ActiveMETZ CONNECT USA Inc.
TERM BLOCK HDR 7POS 5MM
Description
General part information
31017107

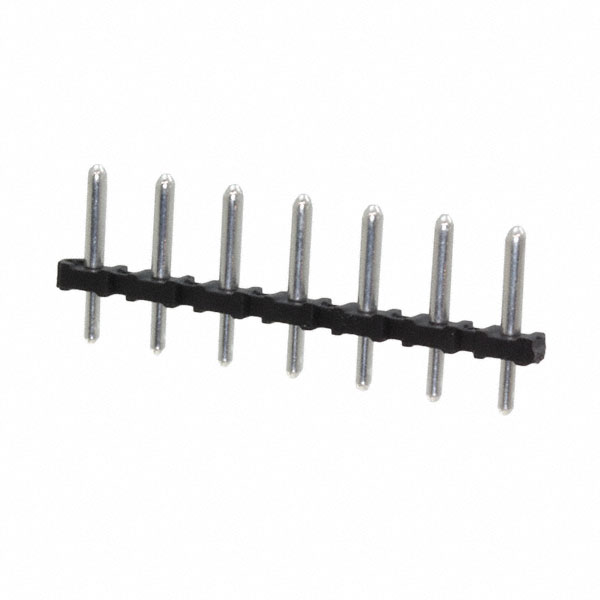

7 Position Terminal Block Header, Male Pins, Unshrouded 0.197" (5.00mm) Vertical Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 31017107 |
|---|---|
| Color | Black |
| Contact Material | Copper Zinc |
| Contact Mating Finish | Silver |
| Contact Tail Length | 0.134 in |
| Current - UL | 15 A |
| Header Orientation | Vertical |
| Housing Material | Polyamide, Nylon 6T, PA6T |
| Insulation Height | 0.073 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 7 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
| Positions Per Level | 7 |
| Termination Style | Solder |
| Type | Male Pins, Unshrouded, Header |
| Voltage - UL | 300 V |
