Description
General part information

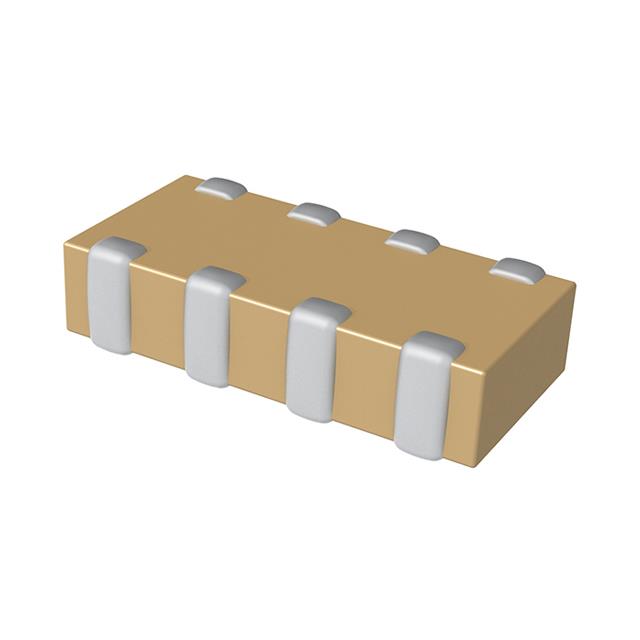

CA064X102M3RACTU
1000pF Isolated Capacitor 4 Array 25 V X7R 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CA064X102M3RACTU |
|---|---|
| Capacitance | 1000 pF |
| Circuit Type | Isolated |
| Dielectric Material | Ceramic |
| Height - Seated (Max) | 0.035 in |
| Mounting Type | Surface Mount |
| Number of Capacitors | 4 |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 0612 (1632 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Temperature Coefficient | X7R |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
