FJ9LCSC-1.5M

Active

UNC Group

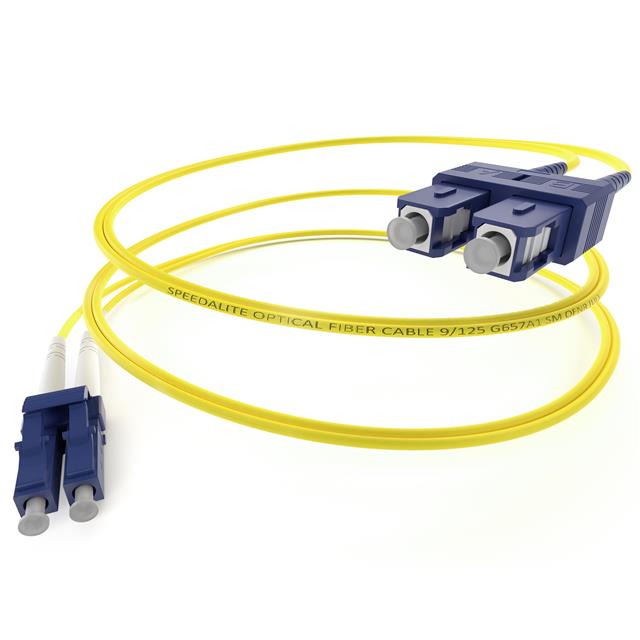

SINGLEMODE LC TO SC FIBER 1.5M

Search across all available documentation for this part.

Active

UNC Group

SINGLEMODE LC TO SC FIBER 1.5M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Fiber Optic LC Duplex To SC Duplex 9/125 3.3' (1.0m)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	FJ9LCSC-1.5M	FJ9LCSC Series

1st Connector	LC Duplex	LC Duplex
2nd Connector	SC Duplex	SC Duplex
Bend Radius [radius]	10 mm	10 mm
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Cable Type	Twin Zip, Bend Insensitive Fiber (BIF)	Twin Zip, Bend Insensitive Fiber (BIF)
Color - Cable	Yellow	Yellow
Color - Connectors	Blue	Blue
Features	Dust Cap, Zipcord, Riser	Dust Cap, Zipcord, Riser
Fiber Type	9/125	9/125
Insertion Loss	0.2 dB	0.2 dB
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Length - Overall [x]	1 m	1 - 25 m
Length - Overall [x]	3.3 ft	3.3 - 82 ft
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Ratings	OFNR	OFNR
Return Loss	55 dB	55 dB
Type	Singlemode, OS2, Duplex	Singlemode, OS2, Duplex

SINGLEMODE LC TO SC FIBER 20M

Part	Cable Diameter [diameter]	Cable Diameter [diameter]	Color - Connectors	Insertion Loss	Length - Overall [x]	Length - Overall [x]	Jacket (Insulation) Material	1st Connector	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Return Loss	Cable Type	2nd Connector	Features	Type	Color - Cable	Bend Radius [radius]	Fiber Type
UNC Group FJ9LCSC-20M	2 mm	0.08 in	Blue	0.2 dB	65.6 ft	20 m	Poly-Vinyl Chloride (PVC)	LC Duplex	OFNR	-20 C	60 °C	55 dB	Twin Zip, Bend Insensitive Fiber (BIF)	SC Duplex	Dust Cap, Riser, Zipcord	Duplex, OS2, Singlemode	Yellow	10 mm	9/125
UNC Group FJ9LCSC-1.5M	2 mm	0.08 in	Blue	0.2 dB	3.3 ft	1 m	Poly-Vinyl Chloride (PVC)	LC Duplex	OFNR	-20 C	60 °C	55 dB	Twin Zip, Bend Insensitive Fiber (BIF)	SC Duplex	Dust Cap, Riser, Zipcord	Duplex, OS2, Singlemode	Yellow	10 mm	9/125
UNC Group FJ9LCSC-25M	2 mm	0.08 in	Blue	0.2 dB	82 ft	25 m	Poly-Vinyl Chloride (PVC)	LC Duplex	OFNR	-20 C	60 °C	55 dB	Twin Zip, Bend Insensitive Fiber (BIF)	SC Duplex	Dust Cap, Riser, Zipcord	Duplex, OS2, Singlemode	Yellow	10 mm	9/125
