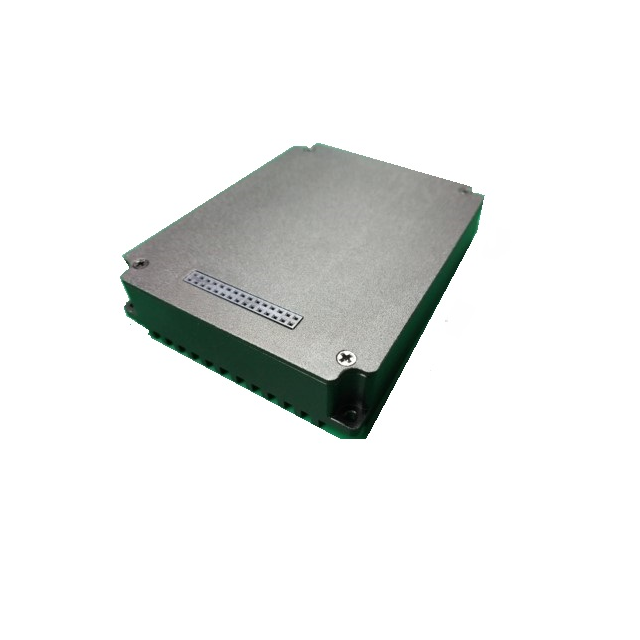

JP-EDFA-HGAIN-2525

Active

Jabil Photonics

25DBM DWDM EDFA MODULE

Search across all available documentation for this part.

Active

Jabil Photonics

25DBM DWDM EDFA MODULE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3031.52

General part information

25DBM DWDM EDFA MODULE

Technical documentation and resources

Specification	JP-EDFA-HGAIN-2525	JP-EDFA Series

Accessory Type	Communication Module	Preamplifier, Communication Module, Booster
Applications	-	Optical
For Use With/Related Products	DWDM System	GPP PlatForm, EDFA, DWDM System
Mounting Type	-	Pluggable, CFP, XFP
Type	-	Booster, Preamplifier, Line Amplifier
Voltage - Supply	-	3.1 - 3.13 V
Voltage - Supply	-	3.46 - 3.5 V
Wavelength	-	1545 - 1548 nm

Part	Type	Accessory Type	For Use With/Related Products	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Mounting Type	Wavelength
Jabil Photonics JP-EDFA-BA-2517	Booster
Jabil Photonics JP-EDFA-PA-2020		Preamplifier	GPP PlatForm
Jabil Photonics JP-EDFA-PA-1522	Preamplifier
Jabil Photonics JP-EDFA-PA-1122	Preamplifier
Jabil Photonics JP-EDFA-SUPERMINI-2405		Communication Module	EDFA
Jabil Photonics JP-EDFA-CFP2-2020				3.1 V	3.5 V	Optical	CFP, Pluggable	1545 nm
Jabil Photonics JP-EDFA-1RU-BOOSTER		Booster	EDFA
Jabil Photonics JP-EDFA-PA-1722	Preamplifier
Jabil Photonics JP-EDFA-CFP2-2010				3.1 V	3.5 V	Optical	CFP, Pluggable	1545 nm
Jabil Photonics JP-EDFA-DUALMINI-2408		Communication Module	EDFA
