Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STTH1R02ZF | STTH1 Series |
|---|---|---|
| Current - Average Rectified (Io) | 1 A | 1 - 1.5 A |
| Current - Reverse Leakage @ Vr | 500 nA | 1 - 500 µA |
| Grade | - | Automotive |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Operating Temperature - Junction | - | -40 °C |
| Operating Temperature - Junction [Max] | 175 °C | 175 °C |

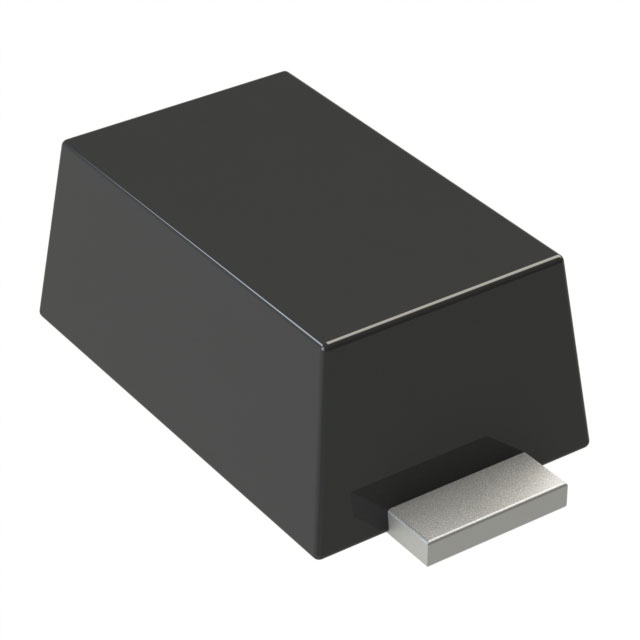

| Package / Case | SOD-123F | SMB, DO-214AA, DO-204AC, DO-15, Axial, DO-214AC, SMA, SOD-123F, DO-204AL, DO-41, SMB Flat Leads, DO-221AA, SOD-128 |
| Qualification | - | AEC-Q101 |
| Reverse Recovery Time (trr) | 32 ns | 30 - 80 ns |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | SOD-123F | SMB, DO-15, SMA, SOD-123F, DO-41, DO-204AC, SMBflat, SOD128Flat |
| Supplier Device Package | - | DO-15 |
| Technology | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 200 V | 200 - 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V | 1 - 1.9 V |
STTH1 Series
400 V, 1 A Ultrafast Diode
| Part | Speed | Package / Case | Reverse Recovery Time (trr) | Technology | Current - Average Rectified (Io) | Voltage - DC Reverse (Vr) (Max) [Max] | Voltage - Forward (Vf) (Max) @ If | Operating Temperature - Junction [Max] | Supplier Device Package | Mounting Type | Current - Reverse Leakage @ Vr | Supplier Device Package | Grade | Qualification | Operating Temperature - Junction [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STTH1L06U | 200 mA, 500 ns | DO-214AA, SMB | 80 ns | Standard | 1 A | 600 V | 1.3 V | 175 °C | SMB | Surface Mount | 1 µA | ||||
STMicroelectronics STTH1R04QRL | 200 mA, 500 ns | Axial, DO-15, DO-204AC | 30 ns | Standard | 1 A | 400 V | 175 °C | DO-15 | Through Hole | 5 µA | |||||
STMicroelectronics STTH1R04A | 200 mA, 500 ns | DO-214AC, SMA | 30 ns | Standard | 1 A | 400 V | 175 °C | SMA | Surface Mount | 5 µA | |||||
STMicroelectronics STTH1R02U | 200 mA, 500 ns | DO-214AA, SMB | 30 ns | Standard | 1.5 A | 200 V | 1 V | 175 °C | SMB | Surface Mount | 3 µA | ||||
STMicroelectronics STTH1R02ZF | 200 mA, 500 ns | SOD-123F | 32 ns | Standard | 1 A | 200 V | 1 V | 175 °C | SOD-123F | Surface Mount | 500 nA | ||||
STMicroelectronics STTH1R04RL | 200 mA, 500 ns | Axial, DO-204AL, DO-41 | 30 ns | Standard | 1 A | 400 V | 175 °C | DO-41 | Through Hole | 5 µA | |||||
STMicroelectronics STTH1R04Q | 200 mA, 500 ns | Axial, DO-15, DO-204AC | 30 ns | Standard | 1 A | 400 V | 175 °C | DO-204AC | Through Hole | 5 µA | DO-15 | ||||
STMicroelectronics STTH1L06UFY | 200 mA, 500 ns | DO-221AA, SMB Flat Leads | 60 ns | Standard | 1 A | 600 V | 1.4 V | 175 ░C | SMBflat | Surface Mount | 1 µA | Automotive | AEC-Q101 | -40 °C | |
STMicroelectronics STTH1R04 | 200 mA, 500 ns | Axial, DO-204AL, DO-41 | 30 ns | Standard | 1 A | 400 V | 175 °C | DO-41 | Through Hole | 5 µA | |||||
STMicroelectronics STTH1R02QRL | 200 mA, 500 ns | Axial, DO-15, DO-204AC | 30 ns | Standard | 1.5 A | 200 V | 1 V | 175 °C | DO-15 | Through Hole | 3 µA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.44 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 3000 | $ 0.10 | ||
| 6000 | $ 0.09 | |||
| 9000 | $ 0.08 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.07 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.33 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
Description
General part information
STTH1 Series
The STTH1R04 series uses ST's new 400 V planar Pt doping technology. The STTH1R04 is specially suited for switching mode base drive and transistor circuits.
Packaged in axial and surface mount packages, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection.
