YB25CKW01-6B-JB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

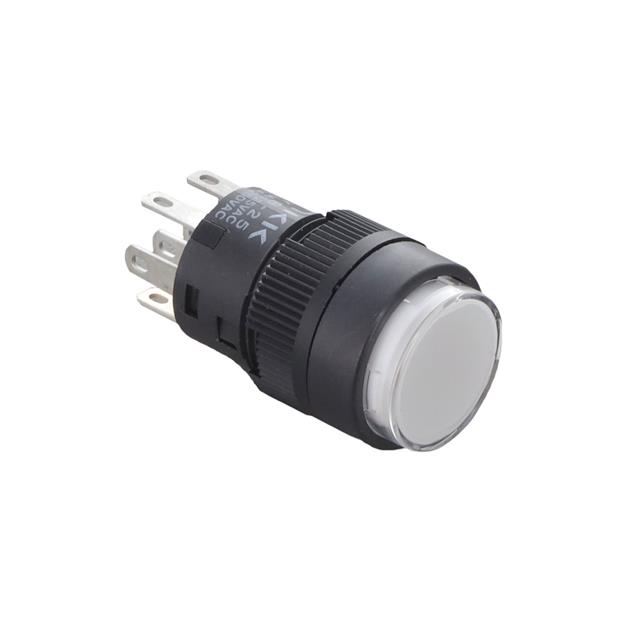

YB25CKW01-6B-JB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB25CKW01-6B-JB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Illumination Type, Color	White, LED
Illumination Voltage (Nominal)	3.3 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB25CK Series

Part	Electrical Life	Type	Illumination Type, Color	Mechanical Life	Voltage Rating - AC	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Switch Function	Mounting Type	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Termination Style	Termination Style	Termination Style	Voltage Rating - DC	Features	Actuator Type	Illumination Voltage (Nominal)	Circuit
NKK Switches YB25CKW01-5D24-JD	100000 Cycles	Illuminated Standard	Amber LED	1000000 Cycles	125 V	No Marking	50 °C	-25 °C	3 A	On-Mom	Panel Mount Front	16 mm	Clear	0.11 in	Quick Connect Solder	2.8 mm	30 V	Voltage Reduction Lighting	Button Round	24 V	DPDT
NKK Switches YB25CKG01-5F24-JF	100000 Cycles	Illuminated Standard	Green LED	1000000 Cycles	28 V	No Marking	50 °C	-25 °C	0.4 VA	On-Mom	Panel Mount Front	16 mm	Clear	0.11 in	Quick Connect Solder	2.8 mm	28 V	Tactile/Audible Feedback	Button Round	24 V	DPDT
NKK Switches YB25CKW01-5C-JC	100000 Cycles	Illuminated Standard	LED Red	1000000 Cycles	125 V	No Marking	50 °C	-25 °C	3 A	On-Mom	Panel Mount Front	16 mm	Clear (Red Filter/Diffuser)	0.11 in	Quick Connect Solder	2.8 mm	30 V	Voltage Reduction Lighting	Button Round	1.9 VDC	DPDT
NKK Switches YB25CKW01	100000 Cycles	Standard		1000000 Cycles	125 V	No Marking	70 °C	-25 °C	3 A	On-Mom	Panel Mount Front	16 mm		0.11 in	Quick Connect Solder	2.8 mm	30 V	Tactile/Audible Feedback	Plunger for Cap		DPDT
NKK Switches YB25CKW01-6G-JB	100000 Cycles	Illuminated Standard	Blue LED	1000000 Cycles	125 V	No Marking	50 °C	-25 °C	3 A	On-Mom	Panel Mount Front	16 mm	Clear	0.11 in	Quick Connect Solder	2.8 mm	30 V	Voltage Reduction Lighting	Button Round	3.6 VDC	DPDT
NKK Switches YB25CKW01-5C12-JB	100000 Cycles	Illuminated Standard	LED Red	1000000 Cycles	125 V		50 °C	-25 °C	3 A	On-Mom	Panel Mount Front	16 mm	Clear	0.11 in	Quick Connect Solder	2.8 mm	30 V		Button Round	12 VDC	DPDT
NKK Switches YB25CKW01-2CF12-JB	100000 Cycles	Illuminated Standard	Green/Red LED	1000000 Cycles	125 V	No Marking	50 °C	-25 °C	3 A	On-Mom	Panel Mount Front	16 mm	Clear	0.11 in	Quick Connect Solder	2.8 mm	30 V	Voltage Reduction Lighting	Button Round	12 VDC	DPDT
NKK Switches YB25CKG01-1F24-JF	100000 Cycles	Illuminated Standard	Green LED	1000000 Cycles	28 V	No Marking	50 °C	-25 °C	0.4 VA	On-Mom	Panel Mount Front	16 mm	Clear	0.11 in	Quick Connect Solder	2.8 mm	28 V	Tactile/Audible Feedback	Button Round	24 V	DPDT
NKK Switches YB25CKW01-5F-JF	100000 Cycles	Illuminated Standard	Green LED	1000000 Cycles	125 V	No Marking	50 °C	-25 °C	3 A	On-Mom	Panel Mount Front	16 mm	Clear	0.11 in	Quick Connect Solder	2.8 mm	30 V	Voltage Reduction Lighting	Button Round	2.2 VDC	DPDT
NKK Switches YB25CKW01-BB	100000 Cycles	Standard		1000000 Cycles	125 V	No Marking	70 °C	-25 °C	3 A	On-Mom	Panel Mount Front	16 mm	White	0.11 in	Quick Connect Solder	2.8 mm	30 V	Voltage Reduction Lighting	Button Round		DPDT
