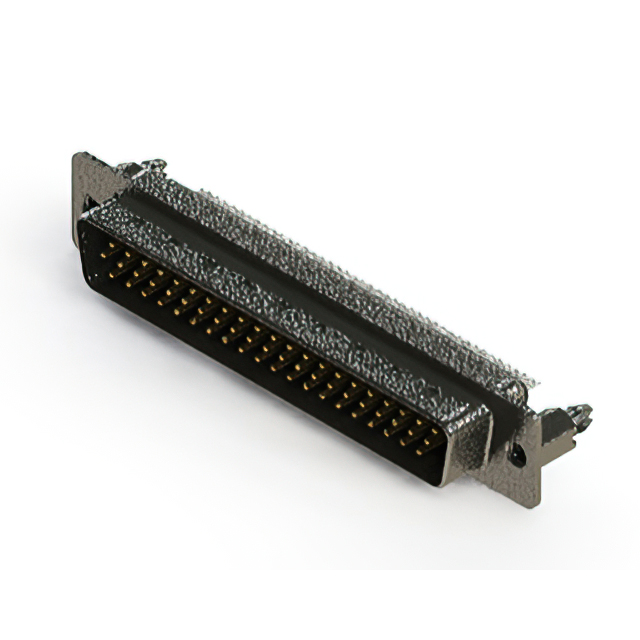

637-062-332-046

Active

EDAC Inc.

VERTICAL HIGH DENSITY D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

637-062-332-046

Active

EDAC Inc.

VERTICAL HIGH DENSITY D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	637-062-332-046

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4

637-062 Series

...

Part	Contact Finish	Number of Positions	Shell Size, Connector Layout	Connector Style	Contact Material	Color	Flange Feature	Material Flammability Rating	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mounting Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Dielectric Material	Connector Type	Termination	Contact Finish Thickness	Shell Material, Finish
EDAC Inc. 637-062-332-242	Gold	62	4	D-Sub High Density	Brass	Black	Housing/Shell (4-40)	UL94 V-0	Grounding Indents Shielded	15 µin	0.38 µm	3	Free Hanging (In-Line)	Signal	85 °C	-55 °C	3 A	Polyester Thermoplastic	Male Pins Plug
EDAC Inc. 637-062-230-041	Gold	62	4	D-Sub High Density	Brass	Black	Housing/Shell (Unthreaded)	UL94 V-0	Grounding Indents Shielded			3	Panel Mount Through Hole	Signal	85 °C	-55 °C	3 A	Polyester Thermoplastic	Male Pins Plug	Solder	Flash	Nickel Plated Steel
EDAC Inc. 637-062-330-067	Gold	62	4	D-Sub High Density	Brass	Black	4-40	UL94 V-0	Board Lock Grounding Indents Shielded	15 µin	0.38 µm	3	Panel Mount Through Hole	Signal	125 °C	-55 °C	3 A	Polyester Thermoplastic	Male Pins Plug	Solder		Nickel Plated Steel
EDAC Inc. 637-062-230-263	Gold	62	4	D-Sub High Density	Brass	Black	Female Screwlock (4-40) Mating Side	UL94 V-0	Grounding Indents Shielded			3	Panel Mount Through Hole	Signal	125 °C	-55 °C	3 A	Polyester Thermoplastic	Male Pins Plug	Solder	Flash
EDAC Inc. 637-062-230-267	Gold	62	4	D-Sub High Density	Brass	Black	4-40	UL94 V-0	Board Lock Grounding Indents Shielded			3	Panel Mount Through Hole	Signal	125 °C	-55 °C	3 A	Polyester Thermoplastic	Male Pins Plug	Solder	Flash
EDAC Inc. 637-062-330-061	Gold	62	4	D-Sub High Density	Brass	Black	Housing/Shell (Unthreaded)	UL94 V-0	Grounding Indents Shielded	15 µin	0.38 µm	3	Panel Mount Through Hole	Signal	125 °C	-55 °C	3 A	Polyester Thermoplastic	Male Pins Plug	Solder		Nickel Plated Steel
EDAC Inc. 637-062-330-247	Gold	62	4	D-Sub High Density	Brass	Black	4-40	UL94 V-0	Board Lock Grounding Indents Shielded	15 µin	0.38 µm	3	Panel Mount Through Hole	Signal	85 °C	-55 °C	3 A	Polyester Thermoplastic	Male Pins Plug	Solder
EDAC Inc. 637-062-330-263	Gold	62	4	D-Sub High Density	Brass	Black	Female Screwlock (4-40) Mating Side	UL94 V-0	Grounding Indents Shielded	15 µin	0.38 µm	3	Panel Mount Through Hole	Signal	125 °C	-55 °C	3 A	Polyester Thermoplastic	Male Pins Plug	Solder
EDAC Inc. 637-062-332-046	Gold	62	4	D-Sub High Density	Brass	Black	Housing/Shell (4-40)	UL94 V-0	Board Lock Grounding Indents Shielded	15 µin	0.38 µm	3	Free Hanging (In-Line)	Signal	85 °C	-55 °C	3 A	Polyester Thermoplastic	Male Pins Plug			Nickel Plated Steel
EDAC Inc. 637-062-330-243	Gold	62	4	D-Sub High Density	Brass	Black	Female Screwlock (4-40) Mating Side	UL94 V-0	Grounding Indents Shielded	15 µin	0.38 µm	3	Panel Mount Through Hole	Signal	85 °C	-55 °C	3 A	Polyester Thermoplastic	Male Pins Plug	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 6.58
Newark	Each	500	$ 7.90

Description

General part information

637-062 Series

62 Position D-Sub, High Density Plug, Male Pins Connector
