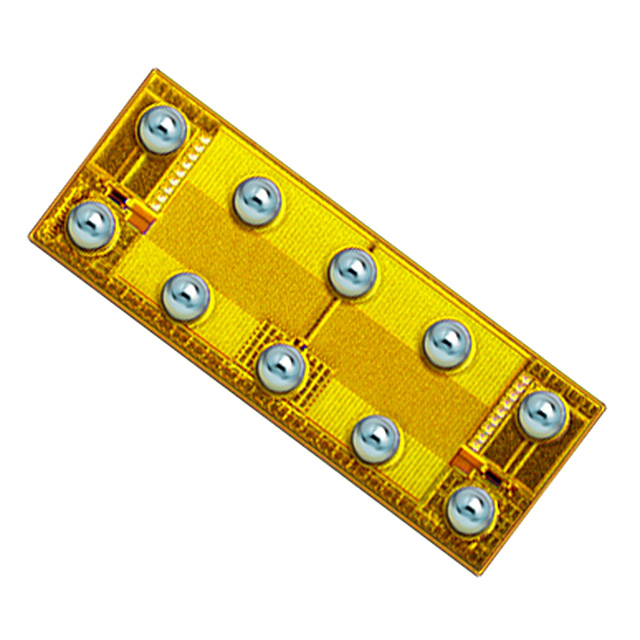

EPC2115ENGRT

Obsolete

Efficient Power Conversion Corporation

IC LOW SIDE DRIVER 5A 10BGA

Search across all available documentation for this part.

Obsolete

Efficient Power Conversion Corporation

IC LOW SIDE DRIVER 5A 10BGA

Technical Specifications

Parameters and characteristics for this part

Specification	EPC2115ENGRT

Applications	DC-DC Converters
Current - Output / Channel [custom]	5 A
Current - Peak Output	18 A
Interface	On/Off
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Low Side
Rds On (Typ)	70 mOhm
Supplier Device Package	10-BGA
Supplier Device Package [x]	2.9
Supplier Device Package [y]	1.1
Technology	Gallium Nitride (GaN) FETs
Voltage - Load	120 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Load	Current - Output / Channel [custom]	Load Type	Rds On (Typ)	Mounting Type	Technology	Interface	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Current - Peak Output	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration
Efficient Power Conversion Corporation EPC2115ENGRT	DC-DC Converters	4.5 V	5.5 V	120 V	5 A	Inductive	70 mOhm	Surface Mount	Gallium Nitride (GaN) FETs	On/Off	1.1	2.9	10-BGA	18 A	150 °C	-40 °C	Low Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Low Side Driver DC-DC Converters Gallium Nitride (GaN) FETs 10-BGA (2.9x1.1)

Technical documentation and resources

No documents available
