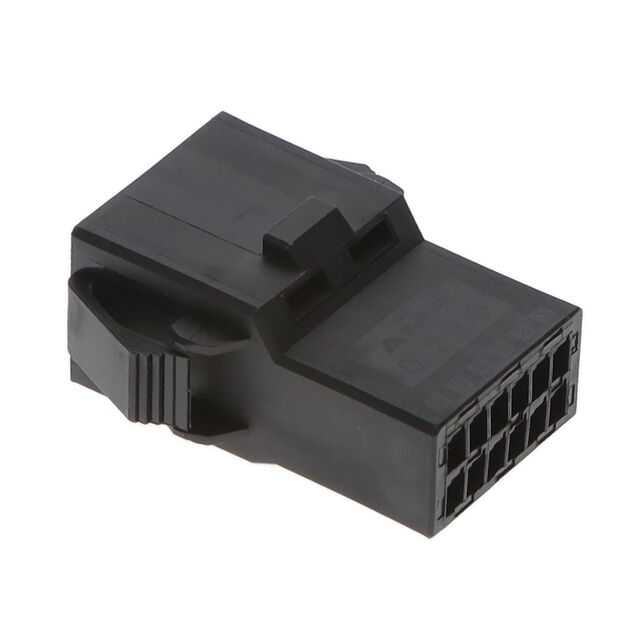

1-1318114-6
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 12POS 2.50MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1318114-6 | 1318114 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Male Pin |
| Features | Polarizing Key | Polarizing Key |
| Insulation Material | Thermoplastic, Glass Filled, Polyester | Thermoplastic, Glass Filled, Polyester |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 12 | 8 - 20 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.098 in | 0.098 in |
| Pitch [x] | 2.5 mm | 2.5 mm |
1318114 Series
CONN PLUG HSG 8POS 2.50MM
| Part | Contact Type | Mounting Type | Note | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Termination | Number of Rows | Insulation Material | Connector Type | Pitch [x] | Pitch [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1318114-4 | Male Pin | Panel Mount, Snap-In | Contacts Not Included | Black | 105 ░C | -55 °C | 8 | Crimp | 2 | Glass Filled, Polyester, Thermoplastic | Plug | 0.098 in | 2.5 mm | Polarizing Key |
TE Connectivity AMP Connectors 2-1318114-9 | Male Pin | Panel Mount, Snap-In | Contacts Not Included | Black | 105 ░C | -55 °C | 20 | Crimp | 2 | Glass Filled, Polyester, Thermoplastic | Plug | 0.098 in | 2.5 mm | Polarizing Key |
TE Connectivity AMP Connectors 1-1318114-6 | Male Pin | Panel Mount, Snap-In | Contacts Not Included | Black | 105 ░C | -55 °C | 12 | Crimp | 2 | Glass Filled, Polyester, Thermoplastic | Plug | 0.098 in | 2.5 mm | Polarizing Key |
TE Connectivity AMP Connectors 2-1318114-4 | Male Pin | Panel Mount, Snap-In | Contacts Not Included | Black | 105 ░C | -55 °C | 8 | Crimp | 2 | Glass Filled, Polyester, Thermoplastic | Plug | 0.098 in | 2.5 mm | Polarizing Key |
TE Connectivity AMP Connectors 2-1318114-6 | Male Pin | Panel Mount, Snap-In | Contacts Not Included | Black | 105 ░C | -55 °C | 12 | Crimp | 2 | Glass Filled, Polyester, Thermoplastic | Plug | 0.098 in | 2.5 mm | Polarizing Key |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.65 | |
| 10 | $ 1.51 | |||
| 25 | $ 1.46 | |||
| 50 | $ 1.45 | |||
| 100 | $ 1.34 | |||
| 300 | $ 1.32 | |||
| 600 | $ 1.20 | |||
| 1200 | $ 1.08 | |||
| 2700 | $ 0.99 | |||
Description
General part information
1318114 Series
12 Rectangular Connectors - Housings Plug Black 0.098" (2.50mm)
Documents
Technical documentation and resources
