1901-1-004-04

Active

Kendall Howard

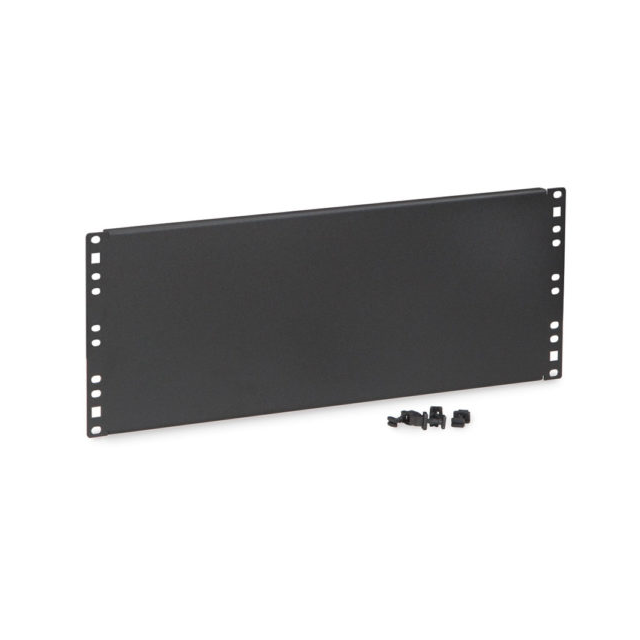

4U FLANGED SPACER BLANK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTool less Spacer Blank Instr

1901-1-004-04

Active

Kendall Howard

4U FLANGED SPACER BLANK

Deep-Dive with AI

DocumentsTool less Spacer Blank Instr

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1901-1-004-04	1901-1 Series

Accessory Type	-	Cable Management
Color	Black	Black
For Use With/Related Products	19" Panel Width Racks	19" Panel Width Racks, 23" Panel Width Racks
Material	Cold Roll Steel (CRS)	Cold Roll Steel (CRS)
Size / Dimension	-	10.47 - 265.94 "
Size / Dimension	-	0.6 - 15.24 mm
Size / Dimension [x]	482.6 mm	19 - 482.6 mm
Size / Dimension [x]	19 "	19 "
Size / Dimension [y]	6.97 in	1.75 - 10.47 in
Size / Dimension [y]	177.04 mm	44.45 - 265.94 mm
Size / Dimension [z]	0.5 in	0.5 - 0.6 "
Size / Dimension [z]	12.7 mm	12.7 - 15.24 mm
Type	Panel, Front	Panel, Front
Ventilation	Non-Vented	Non-Vented
Weight	-	1.1 - 4.8 lb
Weight	-	1 - 907.2 kg

1901-1 Series

4U FLAT SPACER BLANK

Part	Ventilation	Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Color	Weight	Weight	For Use With/Related Products	Type	Accessory Type	Size / Dimension [y]	Size / Dimension [z]
Kendall Howard 1901-1-101-04	Non-Vented	Cold Roll Steel (CRS)	482.6 mm	19 "	177.04 mm	0.6 "	6.97 in	15.24 mm	Black	3 lb	1.4 kg	19" Panel Width Racks	Panel, Front
Kendall Howard 1901-1-000-01												19" Panel Width Racks, 23" Panel Width Racks		Cable Management
Kendall Howard 1901-1-101-03	Non-Vented	Cold Roll Steel (CRS)	482.6 mm	19 "	132.59 mm	0.6 "	5.22 in	15.24 mm	Black	2.3 lbs	1 kg	19" Panel Width Racks	Panel, Front
Kendall Howard 1901-1-001-01	Non-Vented	Cold Roll Steel (CRS)	482.6 mm	19 "	44.45 mm	0.5 in	1.75 in	12.7 mm	Black	1.3 lbs	589.7 g	19" Panel Width Racks	Panel, Front
Kendall Howard 1901-1-002-02	Non-Vented	Cold Roll Steel (CRS)	482.6 mm	19 "	88.14 mm	0.5 in	3.47 in	12.7 mm	Black	2 lbs	907.2 g	19" Panel Width Racks	Panel, Front
Kendall Howard 1901-1-101-01	Non-Vented	Cold Roll Steel (CRS)	482.6 mm	19 "	44.45 mm	0.6 "	1.75 in	15.24 mm	Black	1.1 lbs	499 g	19" Panel Width Racks	Panel, Front
Kendall Howard 1901-1-006-06	Non-Vented	Cold Roll Steel (CRS)	482.6 mm	19 "	265.94 mm	0.5 in	10.47 in	12.7 mm	Black	4.8 lbs	2.2 kg	19" Panel Width Racks	Panel, Front
Kendall Howard 1901-1-101-02	Non-Vented	Cold Roll Steel (CRS)	482.6 mm	19 "	88.14 mm	0.6 "	3.47 in	15.24 mm	Black	2 lbs	907.2 g	19" Panel Width Racks	Panel, Front
Kendall Howard 1901-1-101-06	Non-Vented	Cold Roll Steel (CRS)	19 ", 482.6 mm						Black	4.6 lbs	2.08 kg	19" Panel Width Racks	Panel, Front		10.47 ", 265.94 mm	0.6 ", 15.24 mm
Kendall Howard 1901-1-003-03	Non-Vented	Cold Roll Steel (CRS)	482.6 mm	19 "	132.59 mm	0.5 in	5.22 in	12.7 mm	Black	2.8 lbs	1.3 kg	19" Panel Width Racks	Panel, Front

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 27.00
		5	$ 26.00
		10	$ 25.00

Description

General part information

1901-1 Series

Cold Roll Steel (CRS) Panel, Front 19.000" L x 6.970" W x 0.500" H (482.60mm x 177.04mm x 12.70mm) Black

Documents

Technical documentation and resources

Tool less Spacer Blank Instr

Datasheet
