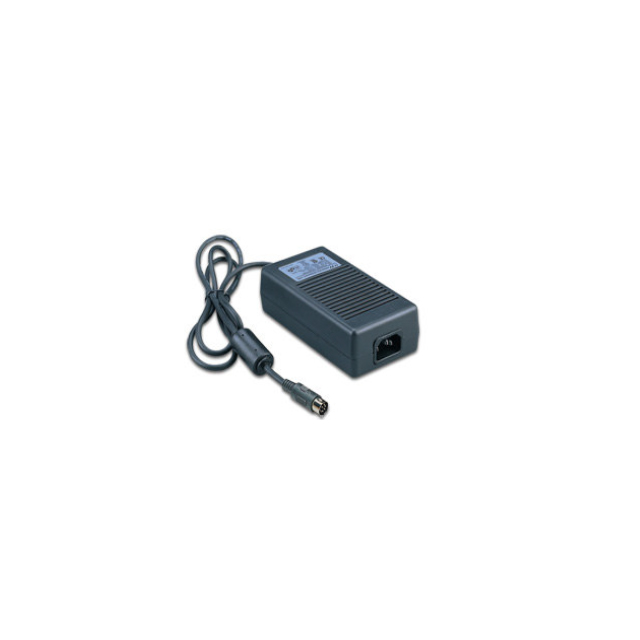

MDL65-24SX-W6

Active

ETA-USA

AC/DC DESKTOP ADAPTER 24V 65W

Search across all available documentation for this part.

Active

ETA-USA

AC/DC DESKTOP ADAPTER 24V 65W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MDL65-24SX-W6	MDL65 Series

Applications	Medical	Medical
Approval Agency	FCC, CE	FCC, CE
Cord Length	1 m	1 m
Cord Length	39.4 "	39.4 "
Current - Output (Max) [Max]	2.71 A	2.32 - 5 A
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Form	Desktop (Class I)	Desktop (Class I)
Input Connector	IEC 320-C14	IEC 320-C14
Input Type	Cord	Cord
No Load Power Consumption [Max]	150 mW	150 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Output Connector [x]	11 mm	10 - 11 mm
Polarization	Positive Center	Positive Center
Power (Watts)	65 W	60 - 65 W
Region Utilized	International	International
Size / Dimension [x]	5.2 in	5.2 in
Size / Dimension [x]	132 mm	132 mm
Size / Dimension [y]	2.72 in	2.72 in
Size / Dimension [y]	69 mm	69 mm
Size / Dimension [z]	1.57 "	1.57 "
Size / Dimension [z]	40 mm	40 mm
Standard Number	60601-1	60601-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	24 V	12 - 28 V

AC/DC DESKTOP ADAPTER 28V 65W

Part	Input Connector	Cord Length	Cord Length	Output Connector [diameter]	Output Connector [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Form	Efficiency	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Current - Output (Max) [Max]	Polarization	Standard Number	Input Type	Region Utilized	No Load Power Consumption [Max]	Output Connector
ETA-USA MDL65-28SX-W6	IEC 320-C14	1 m	39.4 "	2.5 mm, 5.5 mm	10 mm	2.72 in	1.57 "	69 mm	5.2 in	132 mm	40 mm	65 W	28 V	90 VAC	264 VAC	Desktop (Class I)	CoC Tier 2, Level VI	CE, FCC	-20 C	60 °C	Medical	2.32 A	Positive Center	60601-1	Cord	International	150 mW
ETA-USA MDL65-24SX-W6	IEC 320-C14	1 m	39.4 "	2.5 mm, 5.5 mm	11 mm	2.72 in	1.57 "	69 mm	5.2 in	132 mm	40 mm	65 W	24 V	90 VAC	264 VAC	Desktop (Class I)	CoC Tier 2, Level VI	CE, FCC	-20 C	60 °C	Medical	2.71 A	Positive Center	60601-1	Cord	International	150 mW	Barrel Plug
ETA-USA MDL65-12SX-W6	IEC 320-C14	1 m	39.4 "	2.5 mm, 5.5 mm	10 mm	2.72 in	1.57 "	69 mm	5.2 in	132 mm	40 mm	60 W	12 V	90 VAC	264 VAC	Desktop (Class I)	CoC Tier 2, Level VI	CE, FCC	-20 C	60 °C	Medical	5 A	Positive Center	60601-1	Cord	International	150 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.00

General part information

24V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
