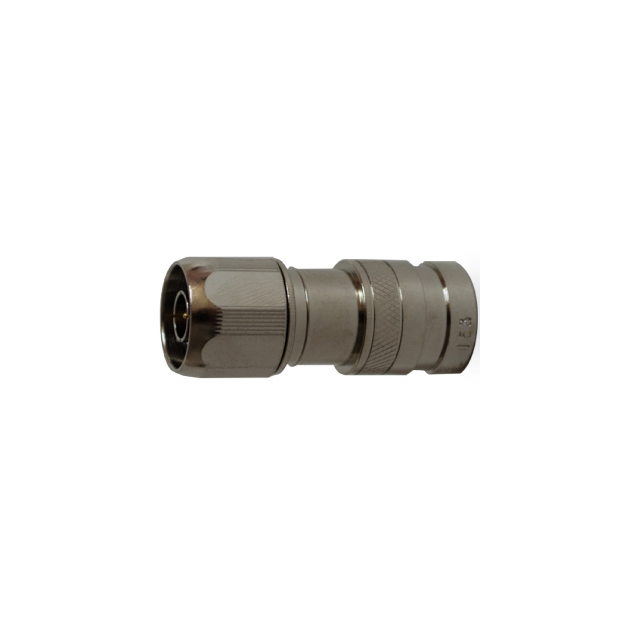

COMP-NM-400PL
ActiveRF Industries
N MALE COMPRESSION; 50 OHMS
Deep-Dive with AI
Search across all available documentation for this part.
COMP-NM-400PL
ActiveRF Industries
N MALE COMPRESSION; 50 OHMS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | COMP-NM-400PL |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | LMR-400 Plenum |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Dielectric Material | Polyetherimide (PEI) |
| Frequency - Max [Max] | 7 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Compression |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 24.80 | |
| 50 | $ 24.20 | |||
| 100 | $ 23.60 | |||
Description
General part information
COMP-NM-400PL
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line)
Documents
Technical documentation and resources
No documents available
