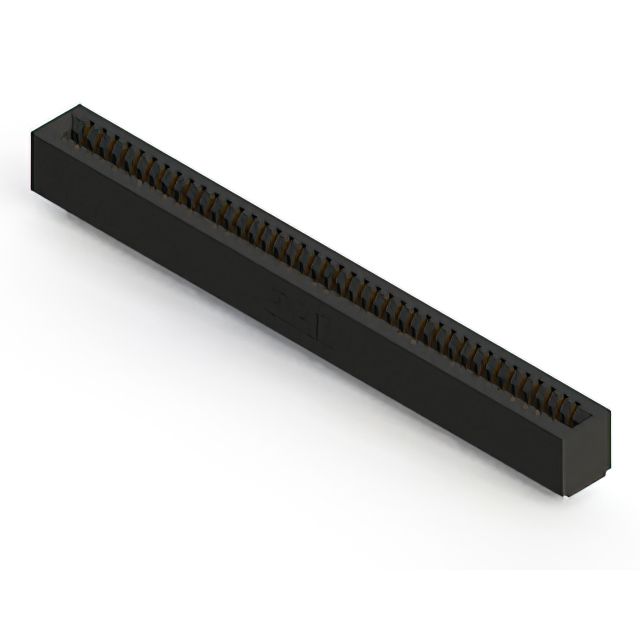

391-080-521-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 80POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

391-080-521-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 80POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	391-080-521-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	80
Number of Positions/Bay/Row [custom]	40
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

391-080 Series

Part	Card Type	Number of Positions	Number of Positions/Bay/Row [custom]	Contact Material	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Gender	Pitch [x]	Pitch [x]	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Material - Insulation	Read Out	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 391-080-521-201	Non Specified - Dual Edge	80	40	Copper Alloy	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Female	2.54 mm	0.1 in	2	Semi Bellows	-40 °C	105 ░C	2	Polyester Thermoplastic	Dual	10 Áin	0.25 Ám	Gold	Through Hole
EDAC Inc. 391-080-520-208	Non Specified - Dual Edge	80	40	Copper Alloy	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Female	2.54 mm	0.1 in	2	Semi Bellows	-40 °C	105 ░C	2	Polyester Thermoplastic	Dual	10 Áin	0.25 Ám	Gold	Through Hole	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 391-080-522-203	Non Specified - Dual Edge	80	40	Copper Alloy	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Female	2.54 mm	0.1 in	2	Semi Bellows	-40 °C	105 ░C	2	Polyester Thermoplastic	Dual	10 Áin	0.25 Ám	Gold	Through Hole	Floating Bobbin Flush Mount	0.116 in	2.95 mm
EDAC Inc. 391-080-524-203	Non Specified - Dual Edge	80	40	Copper Alloy	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Female	2.54 mm	0.1 in	2	Semi Bellows	-40 °C	105 ░C	2	Polyester Thermoplastic	Dual	10 Áin	0.25 Ám	Gold	Through Hole	Floating Bobbin Flush Mount	0.116 in	2.95 mm
EDAC Inc. 391-080-524-204	Non Specified - Dual Edge	80	40	Copper Alloy	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Female	2.54 mm	0.1 in	2	Semi Bellows	-40 °C	105 ░C	2	Polyester Thermoplastic	Dual	10 Áin	0.25 Ám	Gold	Through Hole	Flush Mount Top Opening Unthreaded	0.156 in	3.96 mm
EDAC Inc. 391-080-520-207	Non Specified - Dual Edge	80	40	Copper Alloy	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Female	2.54 mm	0.1 in	2	Semi Bellows	-40 °C	105 ░C	2	Polyester Thermoplastic	Dual	10 Áin	0.25 Ám	Gold	Through Hole	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 391-080-556-207	Non Specified - Dual Edge	80	40	Copper Alloy	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Female	2.54 mm	0.1 in	2	Semi Bellows	-40 °C	105 ░C	2	Polyester Thermoplastic	Dual	10 Áin	0.25 Ám	Gold	Through Hole	Flush Mount M3 Threaded Insert Top Opening			Card Extender
EDAC Inc. 391-080-555-203	Non Specified - Dual Edge	80	40	Copper Alloy	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Female	2.54 mm	0.1 in	2	Semi Bellows	-40 °C	105 ░C	2	Polyester Thermoplastic	Dual	10 Áin	0.25 Ám	Gold	Through Hole	Floating Bobbin Flush Mount	0.116 in	2.95 mm	Card Extender
EDAC Inc. 391-080-556-203	Non Specified - Dual Edge	80	40	Copper Alloy	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Female	2.54 mm	0.1 in	2	Semi Bellows	-40 °C	105 ░C	2	Polyester Thermoplastic	Dual	10 Áin	0.25 Ám	Gold	Through Hole	Floating Bobbin Flush Mount	0.116 in	2.95 mm	Card Extender
EDAC Inc. 391-080-524-207	Non Specified - Dual Edge	80	40	Copper Alloy	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Female	2.54 mm	0.1 in	2	Semi Bellows	-40 °C	105 ░C	2	Polyester Thermoplastic	Dual	10 Áin	0.25 Ám	Gold	Through Hole	Flush Mount M3 Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 16.80
Newark	Each	1	$ 17.52
		100	$ 10.56
		250	$ 9.02
		500	$ 7.13
		1000	$ 6.10

Description

General part information

391-080 Series

80 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
