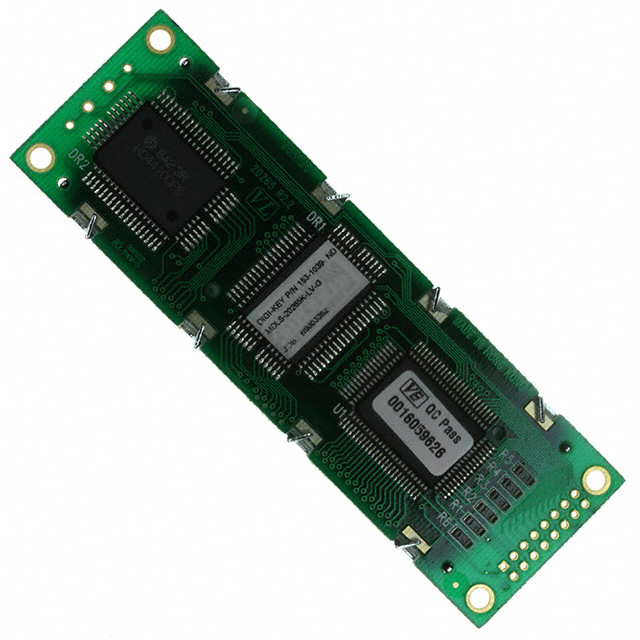

MDLS-20265-LV-G

Active

Varitronix

LCD MOD 40 DIG 20 X 2 REFLECTIVE

Search across all available documentation for this part.

Active

Varitronix

LCD MOD 40 DIG 20 X 2 REFLECTIVE

Technical Specifications

Parameters and characteristics for this part

LCD MOD 40 DIG 20 X 2 REFLECTIVE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Display Type	Dot Size [custom]	Dot Size [custom]	Display Format [x]	Display Format [y]	Interface	Character Format [y]	Character Format [x]	Character Size [z]	Character Size [y]	Viewing Area [y]	Viewing Area [x]	Display Mode	Background Color	Number of Characters	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Backlight	Text Color
Varitronix MDLS-20265-LV-G	50 °C	-5 °C	STN - Super-Twisted Nematic	0.65 mm	0.6 mm	20	2	Parallel	8 Dots	5 Dots	5.55 mm	3.2 mm	18.6 mm	83 mm	Reflective	Green	40	37 mm	6.7 mm	116 mm	Without Backlight	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.29

General part information

Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 116.00mm x 37.00mm x 6.70mm
