M24308/23-65F

Active

Amphenol Positronic

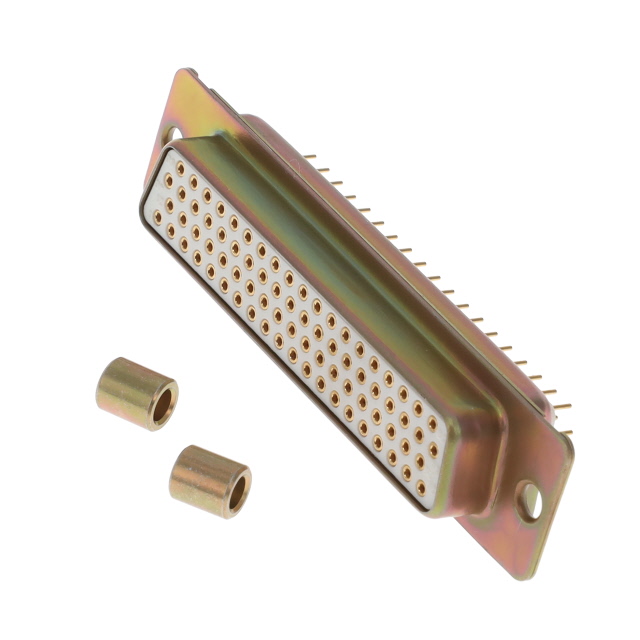

DSUB CONN,STRAIGHT, SOCKET, CADM

Search across all available documentation for this part.

Active

Amphenol Positronic

DSUB CONN,STRAIGHT, SOCKET, CADM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 203.11

General part information

78 Position D-Sub, High Density Receptacle, Female Sockets Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	M24308/23-65F	M24308/23 Series

Backset Spacing	-	0.283 in
Backset Spacing	-	7.2 mm
Color	Natural	Natural
Connector Style	High Density, D-Sub	High Density, D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 - 7.5 A
Dielectric Material	Polyester, Glass Filled	Polyester, Glass Filled
Features	-	Mounting Brackets
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount, Right Angle
Number of Positions	78	50 - 78
Number of Rows	-	3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Yellow Cadmium Plated, Steel	Yellow Cadmium Plated, Steel
Shell Size, Connector Layout	-	5
Termination	Solder	Solder
Wire Gauge [Max]	28 AWG	26 - 28 AWG
Wire Gauge [Min]	22 AWG	20 - 22 AWG

DSUB CONN,STRAIGHT, SOCKET, CADM

Part	Connector Style	Dielectric Material	Termination	Wire Gauge [Max]	Wire Gauge [Min]	Color	Flange Feature	Contact Material	Connector Type	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions	Mounting Type	Contact Type	Current Rating (Amps)	Contact Finish	Shell Size, Connector Layout	Features	Number of Rows	Backset Spacing	Backset Spacing
Amphenol Positronic M24308/23-65F	D-Sub, High Density	Polyester, Glass Filled	Solder	28 AWG	22 AWG	Natural	Housing/Shell (Unthreaded)	Copper Alloy	Receptacle, Female Sockets	Steel, Yellow Cadmium Plated	-55 °C	125 °C	UL94 V-0	78	Panel Mount, Through Hole	Signal	5 A	Gold
Amphenol Positronic M24308/23-29F	D-Sub	Polyester, Glass Filled	Solder	26 AWG	20 AWG	Natural	Housing/Shell (Unthreaded)	Copper Alloy	Receptacle, Female Sockets	Steel, Yellow Cadmium Plated	-55 °C	125 °C	UL94 V-0	50	Panel Mount, Right Angle, Through Hole	Signal	7.5 A	Gold	5	Mounting Brackets	3	0.283 in	7.2 mm
