UF12A23-BTHNR

Active

Mechatronics Fan Group

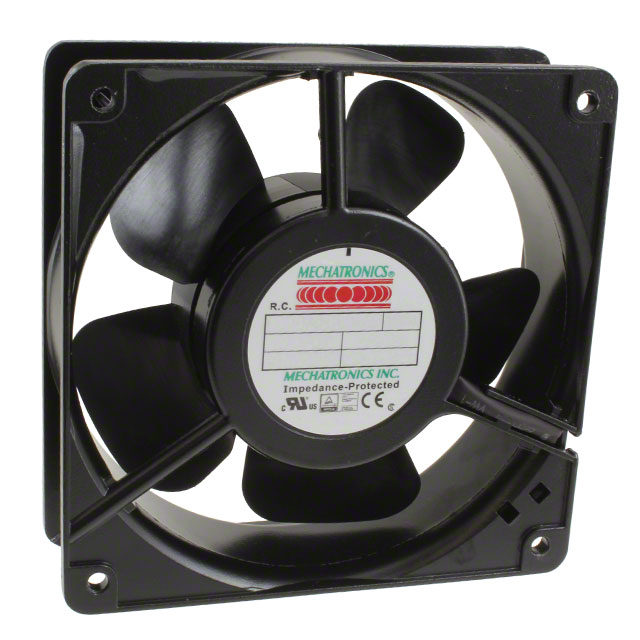

FAN AXIAL 120X38MM 230VAC IP55

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Water Intrusion Test +2

UF12A23-BTHNR

Active

Mechatronics Fan Group

FAN AXIAL 120X38MM 230VAC IP55

Deep-Dive with AI

DocumentsDatasheet Water Intrusion Test +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.14
		10	$ 29.35
		40	$ 28.24
		80	$ 26.38
		120	$ 24.33
		280	$ 23.96

Description

General part information

UF12A Series

Fan Tubeaxial 230VAC Square - 120mm L x 120mm H Ball 106.0 CFM (2.97m³/min) 2 Terminals

Documents

Technical documentation and resources

Datasheet

Water Intrusion Test

AC/DC Fans & Blowers Catalog

Datasheet

AC Axial Part Numbering Guide

Datasheet

Specification	UF12A23-BTHNR	UF12A Series

Air Flow	106 CFM	57 - 106 CFM
Air Flow	2.97 mł/min	1.6 - 2.97 m³/min
Approval Agency	CE, cUL, TUV, UL	cUL, UL, CE, CE, cUL, TUV, UL
Bearing Type	Ball	Sleeve, Ball
Current Rating (Amps)	-	0.09 - 150 A
Current Rating (Amps)	-	0.08 A
Current Rating (Amps)	-	0.16 - 0.17 A
Fan Type	Tubeaxial	Tubeaxial, Frameless
Features	-	Reverse Air Flow, Thermal Overload Protector (TOP), Speed Sensor (Tach), Salt Fog Rated, Conformal Coating, Dual Voltage
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs	50000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Metal
Material - Frame	Aluminum	Aluminum
Noise	46 dB(A)	36 - 51 dB
Operating Temperature [Max]	70 °C	70 - 90 °C
Operating Temperature [Max]	70 °C	70 - 90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	15 W	6 - 18 W
RPM	3100 RPM	1800 - 3100 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	87.2 Pa	22.4 - 87.2 Pa
Static Pressure	0.35 in H2O	0.09 - 0.35 in H2O
Termination	2 Terminals	2 Wire Leads, 2 Terminals, 4 Wire Leads
Termination	-	2 - 3 Pins
Voltage - Rated	230 VAC	115 - 230 VAC
Voltage - Rated	-	230 VAC
Voltage - Rated	-	115 VAC
Weight	-	0.53 kg
Weight	-	1.168 lbs
Width [y]	38 mm	38 mm

Part

Current Rating (Amps)

Bearing Type

Features

Material - Blade

Size / Dimension [y]

Size / Dimension [x]

Operating Temperature [Max]

Operating Temperature [Min]

Voltage - Rated

Width [y]

Approval Agency

Static Pressure

Power (Watts)

Fan Type

Weight

Termination

RPM

Lifetime @ Temp.

Material - Frame

Noise

Air Flow

Termination

Ingress Protection

Voltage - Rated [Max]

Voltage - Rated [Min]

Current Rating (Amps) [Min]

Current Rating (Amps) [Max]

Mechatronics Fan Group

UF12AR10-SWHR

0.19 A

Sleeve

Reverse Air Flow

Polybutylene Terephthalate (PBT)

120 mm

70 °C

-40 °C

115 VAC

38 mm

CE, cUL, UL

0.33 in H2O

82.2 Pa

11 W

Tubeaxial

0.53 kg

1.168 lbs

2 Wire Leads

3100 RPM

Mechatronics Fan Group

UF12A23-BTSR

40 mA

Ball

Polybutylene Terephthalate (PBT)

120 mm

70 °C

-40 °C

230 VAC

38 mm

CE, cUL, TUV, UL

0.11 in H2O

27.4 Pa

8 W

Tubeaxial

2 Terminals

2100 RPM

50000 Hrs

Aluminum

37 dB

64 CFM

1.79 m³/min

Mechatronics Fan Group

UF12AMR23-BTHR-F

110 mA

Ball

Metal

120 mm

90 °C

-40 °C

230 VAC

38 mm

0.24 in H2O

59.8 Pa

18 W

Tubeaxial

2 Terminals

2950 RPM

Aluminum

51 dB(A)

106 CFM

2.97 mł/min

Mechatronics Fan Group

UF12A23-BTLR-T1

70 mA

Ball

Thermal Overload Protector (TOP)

Polybutylene Terephthalate (PBT)

120 mm

70 °C

-40 °C

230 VAC

38 mm

CE, cUL, TUV, UL

15 W

Tubeaxial

0.53 kg

1.168 lbs

2 Terminals

2300 RPM

38 dB(A)

81 CFM

2.27 m³/min

Mechatronics Fan Group

UF12AM23-BTHR-F

0.09 A

Ball

Metal

120 mm

90 °C

-40 °C

230 VAC

38 mm

CE, cUL, TUV, UL

0.24 in H2O

59.8 Pa

13 W

Tubeaxial

2 Terminals

3100 RPM

Aluminum

46 dB(A)

103 CFM

2.88 mł/min

Mechatronics Fan Group

UF12A23-SWHR

Sleeve

Polybutylene Terephthalate (PBT)

120 mm

70 °C

-40 °C

230 VAC

38 mm

CE, cUL, TUV, UL

0.35 in H2O

87.2 Pa

15 W

Tubeaxial

2 Wire Leads

3100 RPM

50000 Hrs

Aluminum

46 dB(A)

106 CFM

2.97 mł/min

Mechatronics Fan Group

UF12AM23-BTHR-B1

0.09 A

Ball

Speed Sensor (Tach)

Metal

120 mm

90 °C

-40 °C

230 VAC

38 mm

CE, cUL, TUV, UL

0.24 in H2O

59.8 Pa

13 W

Tubeaxial

3100 RPM

Aluminum

46 dB(A)

103 CFM

2.88 mł/min

2 Pins, 3 Terminals

Mechatronics Fan Group

UF12A12-BTLR

150 mA

Ball

Polybutylene Terephthalate (PBT)

120 mm

70 °C

-40 °C

115 VAC

38 mm

CE, cUL, TUV, UL

12 W

Tubeaxial

2 Terminals

2300 RPM

50000 Hrs

Aluminum

38 dB(A)

81 CFM

2.27 m³/min

Mechatronics Fan Group

UF12A23-STMR

Sleeve

Polybutylene Terephthalate (PBT)

120 mm

70 °C

-40 °C

230 VAC

38 mm

CE, cUL, TUV, UL

0.28 in H2O

69.7 Pa

15 W

Tubeaxial

0.53 kg

1.168 lbs

2 Terminals

2750 RPM

42 dB

92 CFM

2.58 m³/min

Mechatronics Fan Group

UF12AMR12-BTHR-F

0.19 A

Ball

Metal

120 mm

90 °C

-40 °C

115 VAC

38 mm

0.24 in H2O

59.8 Pa

16 W

Tubeaxial

2 Terminals

2950 RPM

Aluminum

51 dB(A)

106 CFM

2.97 mł/min

Part	Current Rating (Amps)	Bearing Type	Features	Material - Blade	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Width [y]	Approval Agency	Static Pressure	Static Pressure	Power (Watts)	Fan Type	Weight	Weight	Termination	RPM	Lifetime @ Temp.	Material - Frame	Noise	Air Flow	Air Flow	Termination
Mechatronics Fan Group UF12AR10-SWHR	0.19 A	Sleeve	Reverse Air Flow	Polybutylene Terephthalate (PBT)	120 mm	120 mm	70 °C	70 °C	-40 °C	-40 °C	115 VAC	38 mm	CE, cUL, UL	0.33 in H2O	82.2 Pa	11 W	Tubeaxial	0.53 kg	1.168 lbs	2 Wire Leads	3100 RPM
Mechatronics Fan Group UF12A23-BTSR	40 mA	Ball		Polybutylene Terephthalate (PBT)	120 mm	120 mm	70 °C	70 °C	-40 °C	-40 °C	230 VAC	38 mm	CE, cUL, TUV, UL	0.11 in H2O	27.4 Pa	8 W	Tubeaxial			2 Terminals	2100 RPM	50000 Hrs	Aluminum	37 dB	64 CFM	1.79 m³/min
Mechatronics Fan Group UF12AMR23-BTHR-F	110 mA	Ball		Metal	120 mm	120 mm	90 °C	90 °C	-40 °C	-40 °C	230 VAC	38 mm		0.24 in H2O	59.8 Pa	18 W	Tubeaxial			2 Terminals	2950 RPM		Aluminum	51 dB(A)	106 CFM	2.97 mł/min
Mechatronics Fan Group UF12A23-BTLR-T1	70 mA	Ball	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	120 mm	120 mm	70 °C	70 °C	-40 °C	-40 °C	230 VAC	38 mm	CE, cUL, TUV, UL			15 W	Tubeaxial	0.53 kg	1.168 lbs	2 Terminals	2300 RPM			38 dB(A)	81 CFM	2.27 m³/min
Mechatronics Fan Group UF12AM23-BTHR-F	0.09 A	Ball		Metal	120 mm	120 mm	90 °C	90 °C	-40 °C	-40 °C	230 VAC	38 mm	CE, cUL, TUV, UL	0.24 in H2O	59.8 Pa	13 W	Tubeaxial			2 Terminals	3100 RPM		Aluminum	46 dB(A)	103 CFM	2.88 mł/min
Mechatronics Fan Group UF12A23-SWHR		Sleeve		Polybutylene Terephthalate (PBT)	120 mm	120 mm	70 °C	70 °C	-40 °C	-40 °C	230 VAC	38 mm	CE, cUL, TUV, UL	0.35 in H2O	87.2 Pa	15 W	Tubeaxial			2 Wire Leads	3100 RPM	50000 Hrs	Aluminum	46 dB(A)	106 CFM	2.97 mł/min
Mechatronics Fan Group UF12AM23-BTHR-B1	0.09 A	Ball	Speed Sensor (Tach)	Metal	120 mm	120 mm	90 °C	90 °C	-40 °C	-40 °C	230 VAC	38 mm	CE, cUL, TUV, UL	0.24 in H2O	59.8 Pa	13 W	Tubeaxial				3100 RPM		Aluminum	46 dB(A)	103 CFM	2.88 mł/min	2 Pins, 3 Terminals
Mechatronics Fan Group UF12A12-BTLR	150 mA	Ball		Polybutylene Terephthalate (PBT)	120 mm	120 mm	70 °C	70 °C	-40 °C	-40 °C	115 VAC	38 mm	CE, cUL, TUV, UL			12 W	Tubeaxial			2 Terminals	2300 RPM	50000 Hrs	Aluminum	38 dB(A)	81 CFM	2.27 m³/min
Mechatronics Fan Group UF12A23-STMR		Sleeve		Polybutylene Terephthalate (PBT)	120 mm	120 mm	70 °C	70 °C	-40 °C	-40 °C	230 VAC	38 mm	CE, cUL, TUV, UL	0.28 in H2O	69.7 Pa	15 W	Tubeaxial	0.53 kg	1.168 lbs	2 Terminals	2750 RPM			42 dB	92 CFM	2.58 m³/min
Mechatronics Fan Group UF12AMR12-BTHR-F	0.19 A	Ball		Metal	120 mm	120 mm	90 °C	90 °C	-40 °C	-40 °C	115 VAC	38 mm		0.24 in H2O	59.8 Pa	16 W	Tubeaxial			2 Terminals	2950 RPM		Aluminum	51 dB(A)	106 CFM	2.97 mł/min
