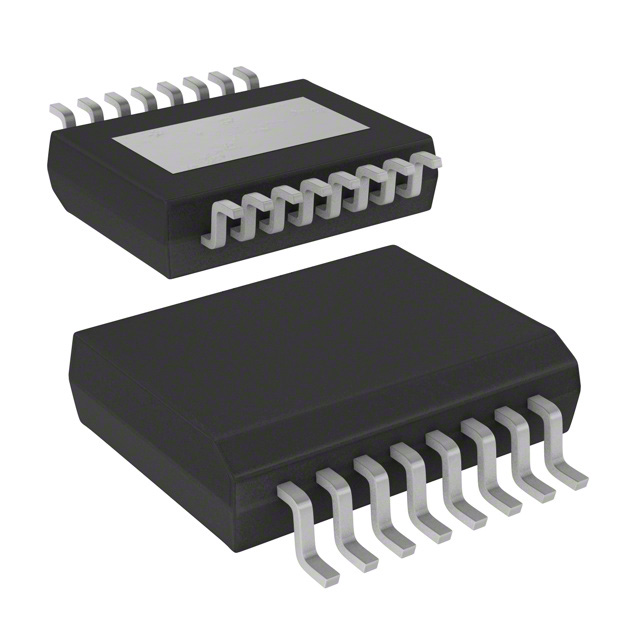

VNQ7140AJTR-E

Active

STMicroelectronics

IC PWR DRVR N-CHAN 1:1 PWRSSO16

Search across all available documentation for this part.

Active

STMicroelectronics

IC PWR DRVR N-CHAN 1:1 PWRSSO16

Technical Specifications

Parameters and characteristics for this part

Specification	VNQ7140AJTR-E

Current - Output (Max) [Max]	8 A
Fault Protection	Open Load Detect, Current Limiting (Fixed), Over Temperature, UVLO, Over Voltage
Features	Status Flag, Auto Restart
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	4
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	0.154 in
Package / Case	3.9 mm
Package / Case	16-PowerLFSOP
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	140 mOhm
Supplier Device Package	PowerSSO-16
Switch Type	General Purpose
Voltage - Load [Max]	28 V
Voltage - Load [Min]	4 V
Voltage - Supply (Vcc/Vdd)	False

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC PWR DRVR N-CHAN 1:1 PWRSSO16

Part	Fault Protection	Package / Case	Package / Case	Package / Case	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Switch Type	Output Type	Ratio - Input:Output [custom]	Supplier Device Package	Current - Output (Max) [Max]	Rds On (Typ)	Voltage - Load [Min]	Voltage - Load [Max]	Input Type	Voltage - Supply (Vcc/Vdd)	Mounting Type	Output Configuration	Features
STMicroelectronics VNQ7140AJTR-E	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO	0.154 in	3.9 mm	16-PowerLFSOP	On/Off	150 °C	-40 °C	4	General Purpose	N-Channel	1:1	PowerSSO-16	8 A	140 mOhm	4 V	28 V	Non-Inverting		Surface Mount	High Side	Auto Restart, Status Flag

General part information

Power Switch/Driver 1:1 N-Channel 8A PowerSSO-16
