01-261.022

Active

EAO

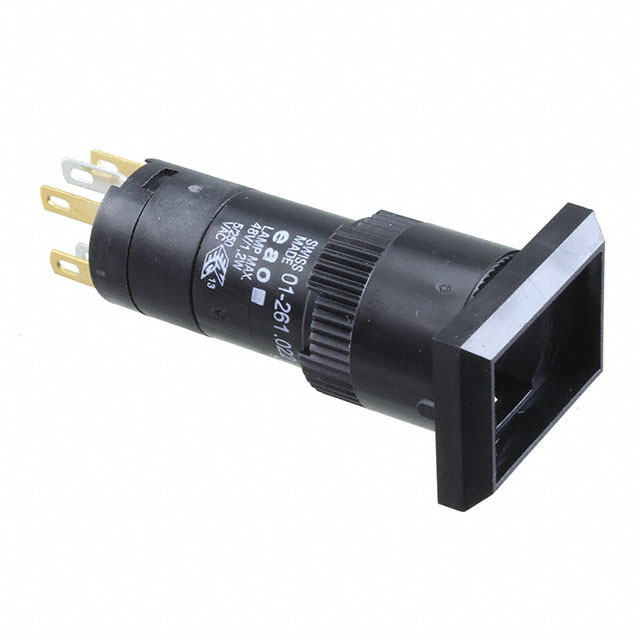

SWITCH PB DPST-NO/NC 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	01-261.022

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	DPST-NO/NC
Current Rating (Amps)	5 A
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Off, Off-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

SWITCH PB DPST-NO/NC 5A 250V

Part	Current Rating (Amps)	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Circuit	Switch Function	Panel Cutout Dimensions [diameter]	Termination Style	Termination Style	Termination Style	Mounting Type	Type	Actuator Type	Actuator Marking	Mechanical Life
EAO 01-261.022	5 A	250 V	55 °C	-25 °C	IP40	DPST-NO/NC	Off-On, On-Off	16 mm	0.11 in	Quick Connect, Solder	2.8 mm	Panel Mount, Front	Standard	Rectangular, Button (Not Included)	No Marking	1000000 Cycles

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
