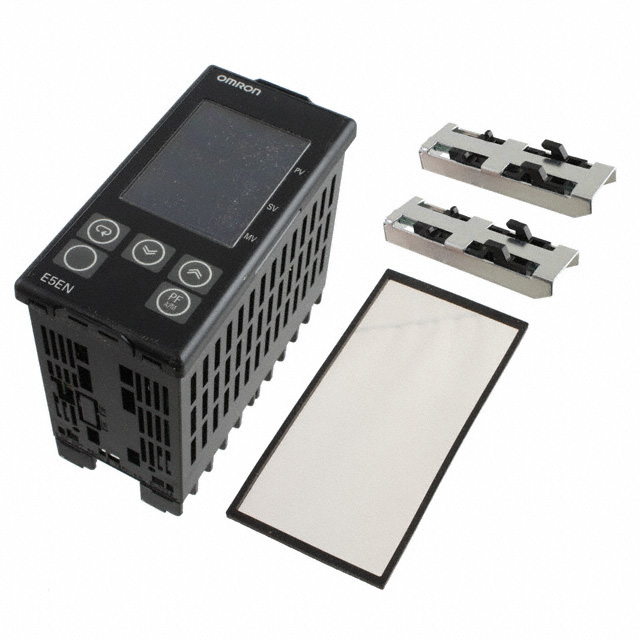

Specification	E5EN-Q3MTD-500-N AC/DC24

Communications	Option Cards Available
Control Method	Off, Proportional (PID), On
Display Characters - Height	0.465 in
Display Characters - Height (Option 2)	0.319 in
Display Characters - Height (Option 3)	0.228 in
Display Type	LCD - Tri Color Characters, Backlight
Features	Option Cards Available
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP66
Input Temperature (Max) (Range 1)	2300 °C
Input Temperature (Min) (Range 1)	-200 °C
Input Voltage (Max) (Range 1)	50 mV
Input Voltage (Min) (Range 1)	0 VDC
Mounting Type	Panel Mount
Number of Characters Per Row (Row 1)	4 characters
Number of Characters Per Row (Row 2)	4 characters
Number of Characters Per Row (Row 3)	4 characters
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-10 °C
Output Type	Voltage (External SSR), Relay
Panel Cutout Length	92 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	45 mm
Relay (Count)	3
Termination Style	Screw Terminal
Type	S, R, J, L, W), N, PLII, K, E, Temperature Controller (RTD, Type B, T
Voltage - Supply	24 VDC
Voltage - Supply (Option 1)	24 VAC
Voltage - Supply (Option 2)	24 DC
Weight	0.573 lb
