3-119-052
ActiveSCHURTER Inc.

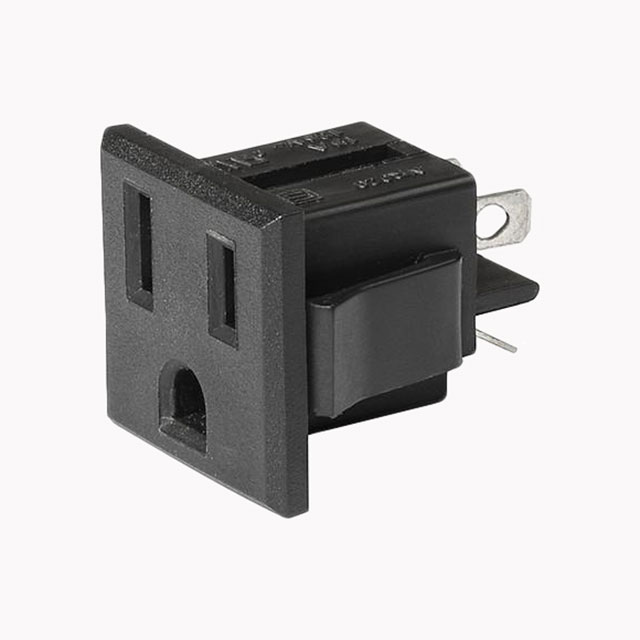

HIGH POWER CONNECTOR, NEMA 5-15R, NR020 SERIES, RECEPTACLE, 125 VAC, 15 A, PANEL MOUNT, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
3-119-052
ActiveSCHURTER Inc.
HIGH POWER CONNECTOR, NEMA 5-15R, NR020 SERIES, RECEPTACLE, 125 VAC, 15 A, PANEL MOUNT, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-119-052 | 3-119 Series |
|---|---|---|
| Approval Agency | UL, cULus, CSA | UL, cULus, CSA |
| Connector Style | NEMA 5-15R | NEMA 5-15R |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Current Rating (Amps) | 15 A | 15 A |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Panel Cutout Dimensions | Variable Size | Variable Size |
| Panel Thickness | - | 0.079 " |
| Panel Thickness | - | 0.031 " |
| Panel Thickness | - | 2 mm |
| Panel Thickness | - | 0.79 mm |
| Termination | Solder Eyelet | Solder Eyelet, IDC, Quick Connect |
| Termination | - | 6.3 - 6.35 mm |
| Voltage Rating | 125 VAC | 125 VAC |
3-119 Series
HIGH POWER CONNECTOR, NEMA 5-15R, NR020 SERIES, RECEPTACLE, 125 VAC, 15 A, PANEL MOUNT, SOLDER
| Part | Material Flammability Rating | Mounting Type | Voltage Rating | Panel Cutout Dimensions | Connector Type | Connector Style | Current Rating (Amps) | Approval Agency | Termination | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 3-119-052 | UL94 V-0 | Panel Mount, Snap-In | 125 VAC | Variable Size | Receptacle, Female Sockets | NEMA 5-15R | 15 A | CSA, cULus, UL | Solder Eyelet | |||||
SCHURTER Inc. 3-119-053 | UL94 V-0 | Panel Mount, Snap-In | 125 VAC | Variable Size | Receptacle, Female Sockets | NEMA 5-15R | 15 A | CSA, cULus, UL | Solder Eyelet | |||||
SCHURTER Inc. 3-119-048 | UL94 V-0 | Panel Mount, Snap-In | 125 VAC | Variable Size | Receptacle, Female Sockets | NEMA 5-15R | 15 A | CSA, cULus, UL | IDC, Quick Connect | 0.079 " | 0.031 " | 2 mm | 0.79 mm | 6.3 mm, 6.35 mm |
SCHURTER Inc. 3-119-051 | UL94 V-0 | Panel Mount, Snap-In | 125 VAC | Variable Size | Receptacle, Female Sockets | NEMA 5-15R | 15 A | CSA, cULus, UL | Solder Eyelet | |||||
SCHURTER Inc. 3-119-054 | UL94 V-0 | Panel Mount, Snap-In | 125 VAC | Variable Size | Receptacle, Female Sockets | NEMA 5-15R | 15 A | CSA, cULus, UL | Solder Eyelet | |||||
SCHURTER Inc. 3-119-049 | UL94 V-0 | Panel Mount, Snap-In | 125 VAC | Variable Size | Receptacle, Female Sockets | NEMA 5-15R | 15 A | CSA, cULus, UL | IDC, Quick Connect | 0.079 " | 0.031 " | 2 mm | 0.79 mm | 6.3 mm, 6.35 mm |
